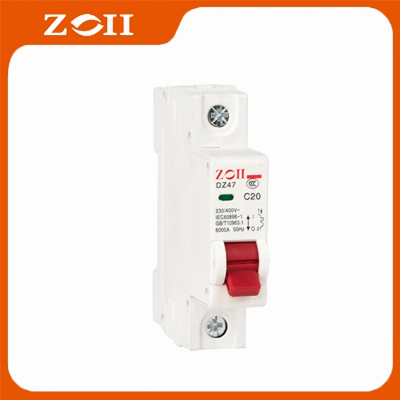

Mini Circuit Breaker AC MCB C45

Company ProfileGeneral IntroductionDZ47-63 series miniature circuit breaker is used in lighting distribution system or motor distribution system.The product is neoteric in structure, light in weight, reliable and excellent in performance.The frame and parts adopt plastic of high fire-resistant and shockproof. The products comply with IEC60898.Specification  Design according toIEC/EN 60898-1CharacteristicB, C, DRated voltageAC 230 / 400V DC 48V Single-pole, 2 pole in series: 96VDCRated frequency50/60HzRated current6,10,16,20,25,32,40,50,63ARated current interrupting ratingB,C,D curve----6000ANumber of poles1,1P+N, 2, 3, 3P+N, 4Endurance≥ 20,000 operationsPower inlet modeUpcomingAllowable ambient temperature range-40ºC~75ºCPer pole width dimension13mmInstallation methodIEC standard rail 35mmEnclosure protection gradeIP20Dual function terminals on both sidesOpen type / lift typeTerminal protectionFinger and hand safeTerminal wiring capacity1-25 mm²Terminal screw tightening torque2-2.5 NmBusbar thickness0.8-2 mmInstallation anglefunction is independent of positionDimensionImages  CertificatesFeature  The handle being sealable or equipped with padlock bracket avoids dangerous operation changes (ON / OFF)Clear indication of the contact positionEnergy limiting class: 3The emission of ionized gases is limited to the severest restrictions: 45 mm grid distanceSuitable for household or similar applications in accordance with:IEC 60898-1, tripping characteristics B, C and D.  Why Choose Us1.Experienced: our team has 13 years of experience2.Factory: Mature technics, strict attitude and perfect quality system3.Before leaving the factory sampling of products for lightning test, strict quality control4.Quality Assurance: Don't let the quality problems do damage to our brand5.Strict quality control, full-inspection. Professionally dedicated to SPD production  /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
