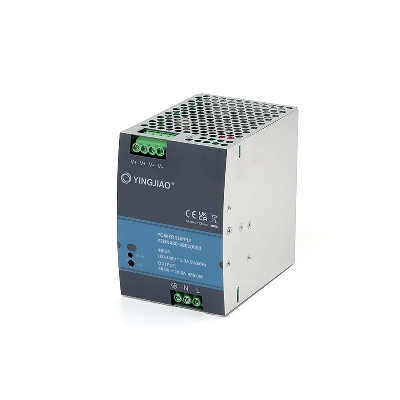

AC-DC DIN Rail Mount Industrial Single Phase Power Supplies

AC-DC DIN RAIL Mount Industrial Smps 48V 10A 480W 24V Single Phase Power SuppliesModel No.YSDN480-24020000YSDN480-48010000DC VOLTAGE24V48VRated Current20A10ARated Power(Max)480W480WRipple & Noise(Max)150mVp-p160mVp-pInput Voltage 90 ~ 264VAC       127 ~ 370VDC Inrush Current20A/115VAC       35A/230VACEfficiency92.00%92.00%Working Temperature -20 ~ +70ºC (Refer to "Derating Curve")Withstand VoltageI/P-O/P:3KVAC   I/P-FG:2KVAC   O/P-FG:0.5KVAC  ProtectionShort Circuit/Over Load/Over Voltage/Over TemperatureConnectionI/P: 3 poles  terminal Block,O/P: 4 poles  terminal BlockMORE PRODUCTS  ABOUT YINGJIAO  Yingjiao Electrical Co,Ltd. was established in 1995 and is dedicated to the designand development of all types of low voltage power adapters, LED drivers, utilizingscaled manufacturing and global sales to fully serve the world's electronic andelectric industries. The core products include switching & linear power adapters.battery chargers, transformers, LED drivers and completely customizable powersolutions, designed for use in telecommunications, IT equipment, consumerelectronic devices, security system, automation, medical equipments, smarthome, LED lights and much more.Yingjiao owns independent high-frequency transformer and SMT workshops,along with 22 production lines for manufacturing & assembling, sell over 660million power supply products in the past years. Committed to total qualitymanagement through continuing improvement processes, including derating &reliability analytics testing, MTBF procedures are an integral part of our researchand development, with quality assurance management in support of ISO9001quality systems ensure that Yingjiao consistently offers the highest qualityproducts for our customers.Yingjiao products comply with RoHS, PAHS, REACH and WEEE standards, AchieveCoC V5 and DoE Vl of efficiency level, obtained and maintained FCCTUV-GS, CBCSA,PSE, RCM, KC,EAC,NOM,IRAM,CE,EMC and CCC safetycertificates.In addition to our full line of products, Yingjiao offers complete 0EM / ODMproduct development to meet your individual requirements. FACTORY&EXHIBITION  CERTIFICATE  SOLUTION   TRANSPORT   /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
