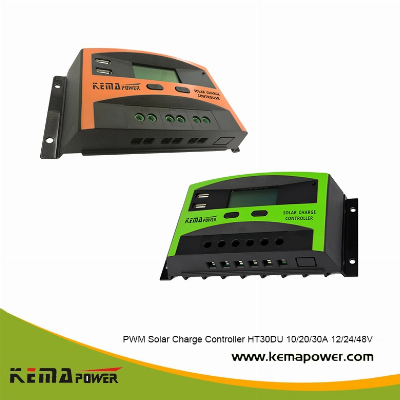

Ht30du 12VDC 24VDC 48VDC 10AMP Solar Power Charge Regulator with RJ45

HT30DU 12VDC 24VDC 48VDC 10AMP Solar Power Charge Regulator with RJ45 KEY FEATURES* PWMsolar charge controller 12/24V 10/20/30A ,48VDC 10/20/30A* LCDDisplay,with 2 USB charger* LCD display generated energy, fault code and battery,PV,Load,charge,discharge details* Bigger terminal , more safety and easy to installation* Selectable Battery type,4 stage Charge,adjustable charge parameter*Temperature compensation Charge and  clock function* Load working mode ,Normal,LightControl,Light and Double time control*Protection for over charge, over discharge, overload, and short circuit,reverse polarity* Preset charging parameters for threebattery types* Communication with computer by RJ45 option  Technical Specifications  ITEM MODELHT30DU-1024HT30DU-2024HT30DU-3024HT30D-3048Rated charge current10A20A30A30ARated load current10A20A30A30ASystem voltage12/24V AUTO work48VDCProtection Over Load≥120%, 60s;≥150%,10s,≥180%,0.2sShort circuitYesOver voltage16V for 12VDC,32V for 24VDC,64V for 48VDC +- 0.5VLow Voltage Disconnection(LVD)10.7V for 12VDC, 21.4V for 24VDCLow Voltage Reconnection(LVR)12.6V for 12VDC,25.2V for 24VDCReverse polarityprotection for solar panel ,battery and DC load.Reverse currentYes.at nightStatic current≤13mA≤25mAloop voltage dropCharge / Discharge≤0.21V / ≤0.12V≤0.21V / ≤0.1V≤0.24V / ≤0.12V≤0.25V / ≤0.10VCharging   voltageabsorption charging14.4V for 12VDC,28.8V for 24VDC,57.6V for 48VDC, 2hoursFloat charge13.8 for 12VDC,27.6V for 24VDC,55.2V for 48VDCEqualizing charging14.6V for 12VDC,29.2V for 24VDC,58.4Vfor 48VDC, 2hoursOpen Circuit Voltage of solar panel12VDC/24V≤50V; 48V≤100VTemperature compensation'-4mV/Cell/ºCCharging control modePWM 4-stage(bulk, absorption,float, equalized)USB Charge2*5V1.0A2*5V1.0A2*5V1.0ANOLCD DisplayLCD for Bat type,VDC,,PV output VDC,Amp and Accumulative charge AH.Load Amp and  Accumulative discharge AH,Battery charge and discharge value. Controller internal Temp,fault code and S/N. load Time and light control statusRunning temperature-20 ~ +55 °CStorage temperature-30 ~ +80 °CHumidity requirements10% -90%, no condensationInstallation cable area≤6mm2≤16mm2≤16mm2≤16mm2Protection classIP30Case materialABSProduct size(mm)188*90*46.5mmProduct Weight(kg)0.3550.360.360.36Carton size(mm)535*425*200 Carton weight(kg)15KG / 30PCSNotesModel HT**DU:D-LCD,U-5V/1AUSB,24-12/24VDC    PRODUCT      LCD PWM Solar Charge Controller 12/24V OR 48V 10A/20A/30A With USB Charger              LCD Display PV/Battery/load/outputparameter/setup                                                     1.LVR..ABSORB..LVD..FLOAT..P(PM)2. Day and night3.Battery type: FLD..GEL..SLD Null means Usr4.Charging5.Error6.Discharging7.Time8.Load state9.Capacity10.Unit11.Data display area  System                          Why Choice us ?15 years Richexperience manufacturer, 8000 square meter,200 worker .15 Engineer keep to improve design and supply new products .7 QC to controller theFullprocess,100% inspection before shipment .TOP 5 manufacturer,Large batch production to guarantee competitive price.We are the only manufacturer who can sign "Quality Warranty"&"On Time Delivery Warranty" with client.One of the Few Supplier whom have factory to make theKey Products and also supplyComplete set system design andinstallationsupporting.Support OEM/ODM service with LOW MOQ!10 years experience ininternational biddingtogether with dealer.annually trainto dealer office or in factory about design/installation and maintenance.FAQ:Are you factory or trade company?We have two Factory in China. we make UPS/Inverter/Battery in Foshan city which is close to Guangzhou. We make Solar Panel in Ningbo city.How to Collect the goods together from Two Factory?We will collect the goods together. the shipment from Ningbo or Guangzhou port.How can I get your pricelist?Send an enquiry about what you need ,oursales will reply u within 12hours.Can I get an sample to check quality before mass order?Welcome to place sample order to check our quality.Any guarantee for your products?One year or Two years for Electronic products and battery.When Fault then replace by Newduring warranty.How about the delivery time?Usually for sample order within one week, for mass order 10-30days.Do u support OEM/ODM service?We have experienced R&D team,welcome to place OEM/ODM orders.Payment terms, any convenient and safe way for our buyers?T/T, W/U or LC options. Your money will be in safe, your business will be in safe!   /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
