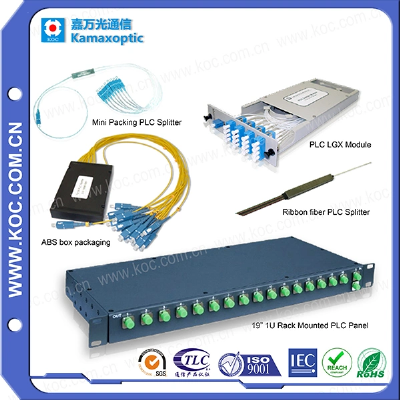

Planar Lightwave Circuit Splitter (PLC Splitter)

IntroductionsThe single-mode Planar Light wave Circuit Splitter (PLCS) is developed based on unique quartz glass waveguide and processes with reliable precision aligned fiber pigtail in a miniature package. It provides a low cost light distribution solution with small form factor and high reliability. The PLCS has the high performance in terms of low insertion loss, low PDL, high return loss and excellent uniformity over a wide wavelength range from 1260nm to 1650nm and working in temperature from -40º C to +85º C. Augoo's PLCS has standard configurations of 1X4, 1X8, 1X16 and 1X32 configurations, as well as customized structures of 2X16, 2X32 and so on. Key FeaturesCompact design Low insertion loss and low PDL High reliability High channel counts Wide wavelength range Wide operating temperature range Customized packaging and configuration ApplicationsFTTX Systems LAN, WAN and Metro Networks Analog/Digital Passive Optical Networks CATV Networks Other applications in fiber optic systems ReliabilityTelcordia GR-1209-CORE Telcordia GR-1221-CORE   Port Configuration1×42×41×82×81×162×161×322×321×64Operating Wavelength(nm)1260~1650PDL (dB)< 0.2Directivity (dB)>55Return Loss (dB)>55Operation Temperature (ºC)-40~+85Storage Temperature (ºC)-40~+85Fiber TypeSMF-28e OR SMF-G657APort Configuration1×42×41×82×81×162×161×322×321×64Insertion Loss(dB)≤7.20≤7.5≤10.5≤11.2≤13.6≤14.6≤17.0≤17.5≤21LOSS Uniformity (dB)≤0.6≤1.2≤0.8≤1.5≤1.0≤2.0≤1.3≤2.5≤2.5Ribbon Fiber Packaging Size (L×W×H) (mm)40×4 ×4.050×4.5 ×4.045×4.5 ×4.050×4.5×4.045×4.5 ×4.060×7.0 ×4.050×7.0 ×4.060×7.0 ×4.060×15 ×4.0¢0.9mmLoose Tube Packaging Size(L×W×H)(mm)50×7.0 ×4.050×7.0 ×4.060×12 ×4.060×12 ×4.060×12 ×4.060×12 ×4.080×20 ×6.080×20 ×6.0100×20 ×6.0Other Packaging SizeABS Size ( for pigtail 2.0mm )ABS Size ( for pigtail 3.0/0.9mm )PLC type1X4;2X41X8;2X81X16;2X16;1X32;2X321X8; 1X161X32;2X32ABS Box Size(mm)100x80x10100x80x10120x80x18120X80X18.5140X114X18PLC moduleCustomized1U PanelL×W×H=430X300X45mmOrdering InformationPLCSPort ConfigurationFiber TypeFiber Type - inPigtail Type-outPigtail lengthConnector14=1X418=1X81S=1X161T=1X321U=1X6424=2X428=2X82S=2X162T=2X32S=SMF-28e G=SMF-G657A1=0.25mm2=0.9mm3=φ3mm4=2.0mmR=0.25mmF=0.9&fanout2=0.9mm3=φ3mm4=2.0mm1=1.0m2=1.5m3=2.0mO=Other0=none1=FC/APC2=FC/PC3=SC/APC4=SC/PC5=ST6=LC/PC7=LC/APCP=MPOX=OtherIntroducing our top-of-the-line fiber optic Planar Lightwave Circuit Splitter, designed to meet the high demands of modern B2B communication networks. Our splitter is the perfect solution for splitting and distributing high-speed data and voice signals across multiple channels, ensuring reliable and efficient communication across your network. Crafted with precision engineering and advanced technology, our Planar Lightwave Circuit Splitter features a compact design that allows for easy installation and maintenance. The splitter is made from high-quality materials that are designed to withstand extreme temperatures, humidity, and other harsh environmental conditions, making it an ideal choice for a wide range of applications. Our fiber optic Planar Lightwave Circuit Splitter is optimized for high-speed data transmission and is capable of delivering a low insertion loss across all channels. This means that you can rest assured that your data signals will be transmitted with minimal loss or interference, ensuring reliable and consistent performance at all times. In addition to its high-quality performance, our splitter is also highly versatile and can be customized to meet the specific needs of your network. It is available in a range of configurations, including 1x2, 1x4, 1x8, 1x16,  1x32 and others, allowing you to choose the right configuration to meet your specific network requirements. Our Planar Lightwave Circuit Splitter is also designed with durability and longevity in mind. It is built to last and requires minimal maintenance, making it a cost-effective and reliable solution for your communication needs. In summary, our fiber optic Planar Lightwave Circuit Splitter is a top-quality, high-performance product that is designed to meet the demands of modern B2B communication networks. With its advanced technology, low insertion loss, and customizable configurations, it is the perfect solution for splitting and distributing high-speed data and voice signals across your network. Invest in our splitter today and experience reliable and efficient communication like never before.       /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
