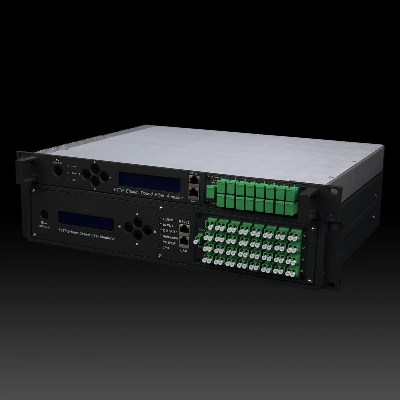

Multi-Ports Output CATV 1550nm High-Power EDFA (HA5400A/B)

HA5400High-Power Multi-Ports Output CATV 1550nm EDFAProduct descriptionHA5400 series is a multi-ports high-power EDFA with gain spectrum band within 1540~1563nm. It is designed for the application of single channel or 1~8 continuous ribbon channels (ITU wavelength). This series of EDFA offers a flexible and low-cost solution for CATV large area coverage of metropolises and medium-sized cities. HA5400A EDFA: 1RU chassis, total output power >1000mW, offers 16 optical outputs at most. HA5400B EDFA: 2RU chassis, total output power >5000mW, offers 64 optical outputs at most. Product features1.1540~1563nm operating wavelength for HA5400 EDFA 2.500~5000mW (27~37dBm) high output power 3.8~64 outputs is optional 4.Low noise subnumber ( Typ ≤4.5dB, Max ≤5.0dB, Output ≥37dBm ) 5.High performance, high reliability 6.APC, ACC, ATC controlled selection (HA5400/P) 7.Powerful RS232 supervisory instruction 8.Efficient space, flexible installation and easy operation 9.Excellent P/P ratio Main application1. AM CATV 2. Digital CATV 3. DBS & MMDS 4. FTTX PON(º C ) PerformanceIndexSupplementMin.Typ.Max.Optical featureOperating wavelength range(nm)1540 1563CATVInput power(dBm)-10 +7.5 Total output power 1)(dBm)27 321U28 372UNumber of output port(pcs)4 161U, SC/APC, LC/APC8 321U, LC/APC8 322U, SC/APC, LC/APC16 642U, LC/APCDifference of each output power(dB)-0.5 +0.5 Output power adjustable range(dBm)-6 0 Noise figure (Pin=0dBm)(dB) 4.55.0HA5437Polarization dependence loss(dB)  0.3 Polarization dependence gain(dB)  0.4 Polarization mode dispersion(ps/nm)  0.3 Input/output isolation(dB)30   Pump power leakage(dBm)  -30 Echo loss(dB)55  APCGeneral featureSerial interface RS232 SNMP network management interface RJ45 Power supply(V)90 265220VAC30 72-48VDCPower consume(W)  150 Work temp. (º C )-5 65 Storage temp. (º C )-40 80 Relative humidity(%)5 95 Size (W) × (D) × (H)  19 × 14.3 × 1.75 (")483 × 363 × 44 (mm)1RU (19") 19 × 14.7 × 3.5 ( " )483 × 373 × 89 ( mm )2RU (19")/* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
