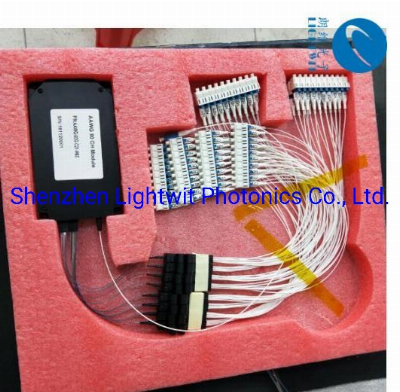

C-Band 50g 80CH Athermal AWG Module in DWDM System

Product Name C-band 80-ch 50GHz Athermal AWG ModuleAthermal modules are packaged using athermalization techniques with no electrical power and no temperature control units, can perform MUX/DeMUX functions.   Athermal AWG(AAWG) have equivalent performance to standard Thermal AWG(TAWG) but require no electrical power for stabilization. They can be used as direct replacements for Thin Film Filters(Filter type DWDM module) for cases where no power is available, also suitable for outdoor applications over -30 to +70 degree in access networks. Lighwit's Athermal AWG(AAWG) provide excellent optical performance, high reliability, ease of fiber handling and power saving solution in a compact package. Different input and output fibers, such as SM fibers, MM fibers and PM fiber can be selected to meet different applications. We can just offer 19" 1U rackmount package for 50G AWG products.The planar DWDM components(Thermal/Athermal AWG) from Lightwit Photonics are fully qualified according to Telcordia reliability assurance requirements for fiber optic and opto-electronic components (GR-1221-CORE/UNC, Generic Reliability Assurance Requirements for Fiber Optic Branching Components, and Telcordia TR-NWT-000468, Reliability Assurance Practices for Opto-electronic Devices).2. Optical Specifications All specifications guaranteed over the operating temperature range.   ParameterSpecificationsUnitCommentMinMaxInput Channel1  Output Channel80 80, channels availableChannel Spacing50GHz 1dB Bandwidth 0.18nmGaussion Type3dB Bandwidth  0.28nmI.L 7dBWorst case in ITU passbandI.L UNI. 1dB Ripple 0.7dBLoss variation in ITU passbandPDL 0.5dBMax. value in ITU passbandAdjacent Crosstalk22 dBWorst case in ITU passbandNon-Adjacent Crosstalk27 dBWorst case in ITU passbandTotal Crosstalk20 dBCumulative crosstalk of all other channelsReturn Loss40 dB Maximum Continuous Optical Power 250mWMaximum input optical powerChromatic Dispersion(CD)-20+20ps/nm PMD 0.5ps   /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
