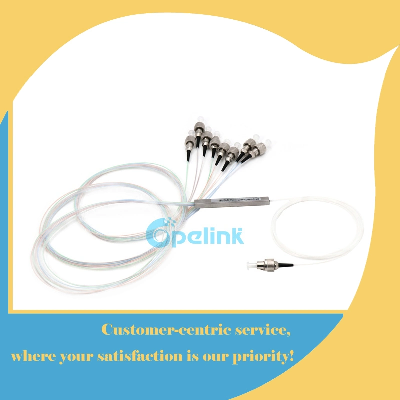

1X8 0.9mm FC Steel Tube Fiber Optic PLC Splitter PLC Splitter is Based on the Planar Waveguide Technology. It Provides a Low Cost Power Distribution Solution with Small Form Factor and High Reliability. Features:Low Insertion lossLow PDLHigh Return LossUniform Power SplittingCompact DesignWide Operating WavelengthWide Operating TemperatureExcellent Environmental & Mechanical StabilityQualified Under Telcordia GR-1221 and GR-1209 Applications:FTTx (FTTB, FTTH, FTTC)Passive Optical Networks (PON)Local Area Networks (LAN)CATV SystemsTest Equipments Specifications: ParameterValueProduct Type1×2/2x21×4/2x41×8/2x81×16/2x161×32/2x321×64/2x641×128/2x128Wavelength(nm)1260~1650I.L(dB)Typ.3.6/4.27.1/7.210.4/10.613.6/13.817.2/17.520.1/20.525.0/25.2Max.4.3/4.57.4/7.610.7/11.014.0/14.818.0/18.021.5/21.525.8/25.8Uniformity(Max.)(dB)0.5/0.80.8/1.01.0/1.21.4/1.51.6/1.82.0/2.52.6/3.0PDL(Max.)(dB)0.2/0.20.3/0.30.3/0.30.3/0.30.3/030.5/0.50.8/1.0TDL(Max.)(dB)0.5R.L(dB)≥55(APC)/≥55(UPC)Directivity(dB)≥55Operating & Storage Temperature-40~+85Note: All the data above does not include connectors. UPC Connectors: IL add 0.2 dB, APC Connectors: IL add 0.3 dB. Order information: StructurePackageTypeEnd To EndConnector(Input-output)Pigtail(Input-output)Fiber CorePigtail Length(Input-output)1002=1X2 1004=1X4 1032=1X321064=1x64 2002=2X2 2004=2X42008=2X8 2032=2X322064=2X64xxxx=otherM= Miniature PackageB= Box packageR= Rack MountP= Blade PackageF=0.9mm Pigtail with connectorD= 2.0/3.0mm pigtail with connector N= Pigtail without connector A=AdapterSU=SC/UPC SA=SC/APCFU=FC/UPC FA=FC/APCST=ST/UPC LA=LC/APCLU=LC/UPC 00=NONEXX=otherB=250um bare fiberL=900um loose tube2=2.0mm3=3.0mmA=AdaptorXX= other1=G652D 2=G657A13=OM3 4=OM45=50/125 6=62.5/125X= other05=0.5m10=1m15=1.5m20=2mXX= otherPackage Size:Plastic Box package/mmMiniature Package/mmBlade Package/mmRack Mount/mm01=100X80X9 02=120X80X1803=140X114X18 04=100X80X905=LGX09=90x20x9.5XX= other11=40X4X4 15=60X7X412=50X7X4 16=80X12X513=60X12X4 17=100X20X614=50x4X4XX= other21=130X100X25 24=130X100X20622=130X100X50 25=130X100X28423=130X100X102 26=130X100X76XX= otherXU=19" Rack Mount (X=1,2,3,4,)31=R Type Mount Box32=Wall-Mount Type33=ODF TypeXX= other----------------------------------------------------FAQ-------------------------------------------------------Q1. Can I have a sample order for this product?A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable. Q2. What about the lead time?A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than Q3. Do you have any MOQ limit for sample order?A: Low MOQ, 1pc for sample checking is available Q4. How do you ship the goods and how long does it take to arrive?A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional. Q5. How to proceed an order for the product?A: Firstly let us know your requirements or application.Secondly We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places deposit for formal order.Fourthly We arrange the production. Q6: Do you offer guarantee for the products?A: Yes, we offer 1-2 years warranty to our formal products.Q7: What action will you take if there are some product problems?A: If there are defective ones in the batch of products, we will offer spare ones for. /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
