Fosc Optic Cable Joints Splice Enclosure

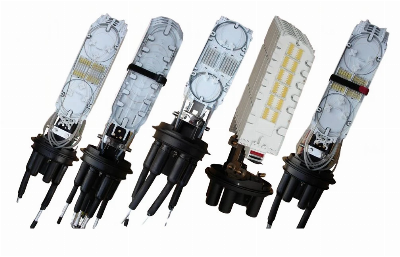

Fiber Optic Splice Closure ( RoHS)The optic fiber splice closures (fiber enclosures) are widely apply for the connecting of optical cable can accommodate up to 24--576 fiber.Main model : GJS 03S, GJS 03A, GJS 03B, GJS 03D -- with 4 round port and 1 oval port.GJS 03 E, GJS 03F, GJS03 M -- with 5 round port and 1 oval port.GJS 03G, GJS 03H, GJS 03K -- with 8 round port and 1 oval portGJS 03- M5AX-288 -- with 16 round port and 1 oval portGJS 03 I -- tubular ClosureStandard : TLC, CE, ISO 9001:2000, ISO 14000, RoHS.Features: 1. The material of closure body: Ageing resistance & ultraviolet radiation resistance2. Base-to-dome seals on closure are mechanical and heat-shrinkable for ease of installation and reentry.3. Compatible with most cable types(single fiber or ribbon), and cable constructions(loose tube, central core, slotted core, modular).And the product can be used in any environment (aerial, buried, handhole, manhole)and in Many applications(tap-off, expressed, branch, and repair)4. No special tools are needed to open the closure, and it can be opened and used repeatedly.Technical Parameter:1. Working Temperature: -40 degrees centigrade~+70 degrees centigrade2. Atmospheric Pressure: 70~150Kpa3. Axial Tension: >2000N/1min4. Stretching Resistance: 2500N/10 square centimetre(1min)5. Insulation resistance: >2*104MΩ6. Voltage Strength: 15KV/1min, no arcover or breakdown7. Pressure in the water: 50m/72hours8. Splice tray with optical taking-in radius≥ 40mm. Low optical lossProducing Lines: /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
