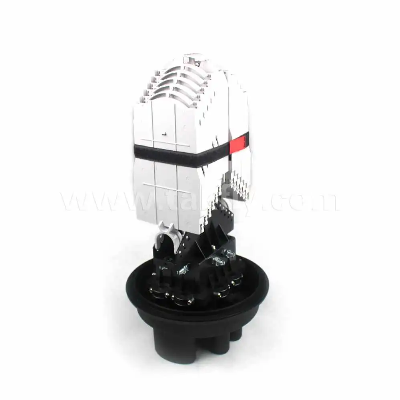

Vertical Type Fiber Optic Splice Closure

Vertical Type Fiber Optic Splice closure Advantage:    The closure can be used in duct, buried, overhead..etc   High quality impact material.pp and internal is ABS   Designed for ftth.   Fiber storage with big basket   Modular fiber management system   Cable diameter range: 9~25   Sealing way of cables:Mechanical seaing by silicon rubber   Quality warranty:2 years   Life span:more than 25 years   Ip rating is ip68   2. Specification  splice tray 03A-tray 02A-tray   number/model                       one splice tray 24 cores 24 cores             two splice trays 48 cores 48 cores             three splice trays 72 cores 72 cores             four splice trays 96 cores 96 cores             five splice trays 120 cores 120 cores             six splice trays 144 cores 144 cores             seven splice trays 168 cores 168 cores             eight splice trays 192 cores 192 cores             nine splice trays 216 cores 216 cores              Tensplice trays    240 cores            (2)Dimension of the closure               Model portclosure LengthRoundOval port    diameter (mm)diametermin (mm)    maximum(  (mm)      mm)                 V06 6160 5408~238~26  Remark: on one oval port,it can be suit for 2 cables,which diameter can be from   8 mm to 26mm.The oval port can be used for inline cutting.   (2)Environment   Temperature:-40ºC~+60ºC   Atmospheric Pressure:70kPa~106kPa   (3)Lifespan:more than 25 years   (4).Material:Higt strength polypropylene(PP)and ABS,which can assure any items of physical performance is excellent.       Why choose Takfly ? Service: 1.Customer's logo: Acceptable 2.General inspection on fixing before packing 3.Third party inspection: Acceptable   Quality Control: All products must go through five checks before manufacturing process   1.Material incoming inspection before production 2.Full check after every individual process finished 3.Full check after production half-done 4.Full check before packing 5.Spots check after production packed before shipping   Advantage: 1.15 years experience in manufacturing fiber optic products.. 2.Availability of R & D with more than 10 engineers. 3.Available of design and making mold with special molding house. 4.High quality, attractive price and fast delivery(2-7days) 5.OEM, ODM customer designs are also welcomed 6.More than 200 worker 7.Excellent service   Delivery: 1.Packing: Plastic bag& carton, Neutral packing or as your required. 2.Sample time: 1-3 days after confirmation. 3.Order lead time: 2-7working days depend on quantity and products. 4.Shipping port: Shenzhen, HK or other ports as you required. 5.Shipping term: EXW or FOB Shipping: 1.Once confirmed the order, and payment sent after finishing goods. 2.Goods will be sent within 7 days with the fast, reasonable and efficient shipping mode such as DHL, EMS, UPS,FEDEX, TNT, etc. 3.Please make sure your postal address is correct. Any lost and mistakes because  of wrong address. Contact: 1.Our working time:8:30am~5:30pm  2.All the inquiries will be replied within 24hours, So please feel free to send us your inquiry. 3.When our trade manager is off line, please feel free to leave a message, and tell us the products you  need, our model number, and your E-mail address, we will  reply to you within 24hours too. If any interested, more products specification as well as price, sample will be sent for your evaluation! If any interested, more products specification as well as price, sample will be sent for your evaluation!       /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
