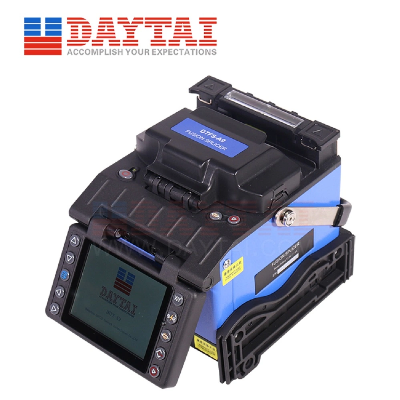

Automatic Fusion Splicing Machine Fiber Optic Fusion Splicer

Automatic Fusion Splicing Machine Fiber Optic Fusion SplicerProduct DescriptionFusion Splicer DTFS-A9,Splicing program:53 (templet), 40(user),Fiber image magnification:120X (X or Y view),60X (X and Y view),Monitor:3.5 inch color LCD monitor,Operating condition:0-5000m above sea level, -10-50°C Max wind velocity of 15m/s,Dimension:122mm(L)xl48mm(W)xl30mm(H). ★Features⊙USB interface⊙Fiber core can be display clearly⊙Software upgrade via USB interface⊙Auto check quality of cleaved end face⊙Core to core alignment by PAS technology(PAS: Profile Alignment System)⊙Single X or Y view and X & Y view simultaneously⊙3.5 inch color LCD monitor with clear digital image display  Specification ITEMApplicable fibersSM MM DS NZDSFiber diameterCladding diameter:80-150pmFiber countSingleFiber cleaved length8-16mm (Coating diameter:250pm)Actual average splice loss0.02dB(SM),0.01dB(MM),0.04dB(DS),0.04dB(NZDS)Typical splicing timeTypical 9 sec (standard SM fiber)Return loss>60dBSplicing modeAuto, Calibrate, Normal, SpecialFiber aligning methodMeticulous,  Core, Clad, ManualSplicing program53 (templet), 40(user)Tube heating program9 (templet),24(user)Tube typical heating timeTypical 30 secProtection sleeve length60mm, 40mmStorage of splice result4000 results, 20 parameter per resultFiber image magnification120X (X or Y view), 60X (X and Y view)Battery capacityTypical 300 cycles (splice and tube heating)Monitor3.5 inch color LCD monitorTension test2NElectrode life2500TerminalUSBPower supplyAC 100-240V with AC adapter DC13.5V Inner Li-battery (5200mAH)Operating condition0-5000m above sea level, -10-50°C Max wind velocity of 15m/sDimension122mm(L)xl48mm(W)xl30mm(H)Weight1.47Kg excluding battery 1.73Kg including batteryProduct Display /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
