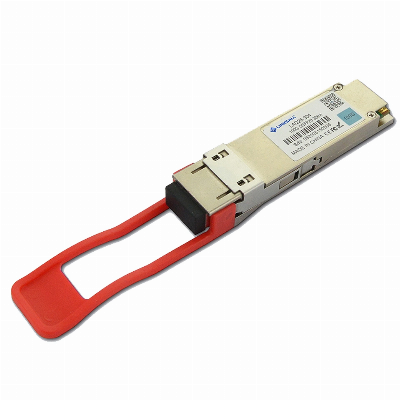

Generic Compatible 100gbase-Lr4 Qsfp28 1310nm 10km Dom Optical Transceiver Module

100Gb/s QSFP28 LR4 10km TransceiverPRODUCT FEATURES  Compliant with 100GBASE-LR4 Support line rates from 103.125 Gbps to 111.81 Gbps Integrated LAN WDM TOSA / ROSA for up to 10 km reach over SMFDigital Diagnostics Monitoring InterfaceDuplex LC optical receptacle No external reference clock Electrically hot-pluggableCompliant with QSFP28 MSA with LC connectorCase operating temperature range:0°C to 70°C  Power dissipation < 3.5 W  APPLICATIONS100G Ethernet &100GBASE-LR4 ITU-T OTU4STANDARDCompliant to IEEE 802.3ba, IEEE 802.3bm and 100G LR4Compliant to SFF-8436General DescriptionLAQ2-8429-LR optical Transceiver integrates receiver and transmitter path on one module. In the transmit side, four lanes of serial data streams are recovered, retimed, and passed to four laser drivers. The laser drivers control 4 Distributed Feedback Laser (DFB) with center wavelength of 1296 nm, 1300nm, 1305nm and 1309 nm. The optical signals are multiplexed to a single -mode fiber through an industry standard LC connector. In the receive side, the four lanes of optical data streams are optically de-multiplexed by the integrated optical de-multiplexer. Each data stream is recovered by a PIN photo-detector and trans-impedance amplifier, retimed. This module features a hot-pluggable electrical interface, low power consumption and MDIO management interface.The product is designed with form factor, optical/electrical connection and digital diagnostic interface according to the QSFP28 Multi-Source Agreement (MSA) and compliant to IEEE 802.3bm.Absolute Maximum Ratings   ParameterSymbolMin.Typ.Max.UnitNoteStorage TemperatureTs-40-85ºC Relative HumidityRH5-95% Power Supply VoltageVCC-0.3-4V Signal Input Voltage Vcc-0.3-Vcc+0.3V Recommended Operating ConditionsParameterSymbolMin.Typ.Max.UnitNoteCase Operating TemperatureTcase0-70ºCWithout air flowPower Supply VoltageVCC3.133.33.47V Power Supply CurrentICC- 1060mA Data RateBR 25.78125 GbpsEach channelTransmission DistanceTD -10km Coupled fiberSingle mode fiber9/125um SMFOptical CharacteristicsParameterSymbolMinTypMaxUnitNOTETransmitter      Wavelength Assignmentλ01294.531295.561296.59nm λ11299.021300.051301.09nm λ21303.541304.581305.63nm λ31308.091309.141310.19nm Total Output. PowerPOUT  10.5dBm Average Launch Power Per lane -4.3 4.5dBm Spectral Width (-20dB)σ  1nm SMSR 30  dB Optical Extinction RatioER4  dB Average launch Power off per lanePoff  -30dBm RINRIN  -128dB/Hz Output Eye Mask definition{X1,X2,X3,Y1,Y2,Y3}{0.25,0.4,0.45,0.25,0.28,0.4} Receiver      Rx Sensitivity per laneRSENS  -10.6dBm1LOS De-Assert LOSD -30  dBm LOS Assert LOSA   -12dBm Input Saturation Power (Overload)Psat  4.5dBm Receiver Reflectance Rr  -26dB Notes:   Measured with a PRBS 231-1 test pattern, @25.78Gb/s, BER
