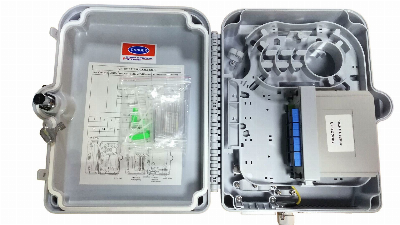

FTTH 16 Cores Fiber Optic Terminal Box

FTTH 16 Cores Fiber Optic Terminal BoxDescription:    FTTH Fiber optic terminal box is suitable for FTTH, optical fiber splitting/splicing using.    ABS plastic, light weight    Reasonable design for fiber arrangement, bend radius more than 30mm    Suitable for 1pc 4 way splitter or 1pc 8 way splitter with LC connector (Steel tube type) Main Parameters: Operate temperature:-5ºC+40ºC Relative humidity:≤90%(+30ºC) Atmospheric pressure: 70Kpa-106Kpa Storage Temperature:-40ºC+70ºC Optical parameter: Insertion loss≤0.3dB; Excess loss:≤0.2B; Return loss≥50dB IP standard:IP55   FunctionCable terminal, Passive SplitterCable diameter W*D*H(mm)210x140x40Cable diameter(mm)Φ7~Φ10Cable ports1+16Max Capacity of splice16 (single fiber)IP RatingIP65Packing size60pcs/carton  (460*460*540)/* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
