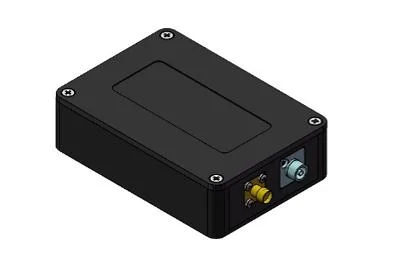

High-Speed Photodetector Module with DC-Coupled SMA RF Output

Product DescriptionThe high-speed detector module is a hermetical sealing, high reliability, low harmonic distortion PIN detector module, which is suitable for optical transmission system and high-speed laser signal measurement. The module has high analog bandwidth, the photoelectric gain is 0.9 A/W, and the response bandwidth covers the wavelength of 1000~1650nm. The analog bandwidth is available in 3GHz or 14GHz, DC-coupled SMA RF output.Key FeaturesHigh-speed DC-coupled OutputHigh Saturated Input PowerApplicationsFiber Optic CommunicationUltrashort Pulse Laser MeasurementProduct ParametersParameterUnitMinTypMaxOperation Wavelengthnm1000-1650Average Optical Power Input RangedBm-10-3Rising Edge Time(14G)ps-18-Rising Edge Time(3G)-125-Photoelectric ResponseA/W-0.9-Return LossdB-37--3dB High Cutoff Frequency(14G)GHz14--3dB High Cutoff Frequency(3G)3--Supply VoltageV DC-57Product Sizemm                                                100x70x28Operation Temperature Range°C-5-+55Storage Temperature Range°C-40-+85Fiber Type                                                                               SMF-28e, FC/APCPurchase InfoHSPDMBandwidthSupply VoltageConnector3=3GHZ14=14GHz1=Internal Supply Voltage2=External Supply VoltageFC/APCFC/PC  /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
