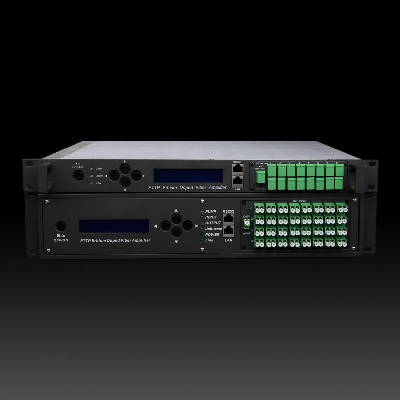

HA5800A/B1550nm CATV Optical Amplifier EDFA (1540~1563nm)Product descriptionHA5800 series is a low noise, high performance, FTTP high power multi-ports optical amplifier EDFA with gain spectrum band within 1540~1563nm. Each output port for optical amplifier has built-in well-performed CWDM. Every external up-link optical port of optical amplifier can connect with OLT very conveniently. Each 1550nm (CATV)'s out-put optical port multiplexes 1310/1490n's data stream, in order to reduce the quantity of the component and improve the datasheet and reliability of the system. HA5800 optical amplifier can be compatible with any FTTX PON Technology. It offers a flexible and low-cost solution for CATV large area coverage of metropolises and medium-sized cities. Product features1.1540~1563nm operating wavelength for optical amplifier EDFA 2.500~10000mW (27~40dBm) high output power 3. Low noise subnumber ( Typ ≤ 4.5dB, Max ≤ 5.0dB ) 4. High performance, high reliability 5.8~64 uplink optical port, used in OLT 6.8~64 1550nm output optical port, multiplex 1310/1490nm data stream 7. Can be compatible with any FTTX PON Technology: EPON/GEPON, GPON, BPON, DPON 8. Perfect RS232, SNMP 9. Efficient space, flexible installation and easy operation 10. Excellent P/P ratio Main application1. FTTX PON 2. RFoG PerformanceIndexSupplementMin.Typ.Max.Optical featureCATV Operation wavelength(nm)1540 1563CATVOLT pass wavelength(nm) 1310/1490 CATV pass wavelength loss(dB) 0.81550nmOLT pass wavelength loss(dB) 0.81310/1490nmCATV & OLT isolation(dB)40 Number of uplink optical ports (for OLT)(pcs) 8161U 16642UCATV input power(dBm)-10 +7.5 Total output power(dBm)27 331U28 402UNumber of output ports(pcs) 8161U 16642UEach port output power(dBm)10 22 Difference of each output power(dB)-0.5 +0.5 Output power adjustable range(dBm)-6 0HA5800/PNoise figure (Pin=0dBm)(dB) 4.55.0 Polarization dependence loss(dB) 0.3 Polarization dependence gain(dB) 0.4 Polarization mode dispersion(ps/nm) 0.3 Input/output isolation(dB)30 Pump power leakage(dBm) -30 Echo loss(dB)55 APCGeneral featureSerial interface RS232 SNMP network management interface RJ45 Power supply(V)90 265220VAC30 72-48VDCPower consume(W) 150 Work temp. (º C )-5 65 Storage temp. (º C )-40 80 Relative humidity(%)5 95 Size (W) × (D) × (H) 19 × 14.5 × 1.75 ( " )483 × 365 × 44 ( mm )1RU (19") 19 × 14.7 × 3.5 ( " )483 × 375 × 89 ( mm )2RU (19") /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
