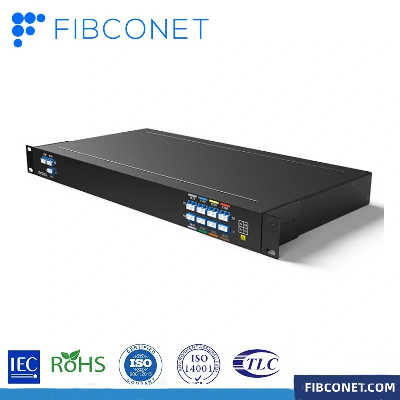

Plug-in Lgx Box 2slot 1u Rack 8CH 1470-1610nm CWDM MuxThis passive CWDM device is designed to provide seamless connectivity and support a wide range of applications in industries such as Broadcast and TV, IDC, finance, government, cloud and massive data.With its versatile features and expandability, our CWDM MUX DEMUX is the perfect solution for environments where optical fiber resources are scarce. It's designed to support 8 different channels in two optical fibers for efficient point-to-point transmission.Key FeaturesWide wavelength range: 1470nm to 1610nmPassive CWDM technologyPlug-in LGX box designSupports 8 channels for different business applicationsPoint-to-point transmission over two optical fibersExpansion port for future scalabilityApplicationsBroadcast and TVIDC (Internet Data Centers)FinanceGovernmentCloudMassive data industryProduct PanelProduct Specification Wavelength8 channels 1470-1610nmChannel Spacing20nmChannel Passband±6.5nmTechnologyTFF (Thin Film Filter)Insertion LossRegular :≤ 2.4dBLink Loss≤ 2.4dBInsertion Loss @ 1% Mon≤ 26dB Center Wavelength Accuracy±0.05nmReturn Loss≥ 45dBDirectivity≥ 45dBPolarization Mode Dispersion≤ 0.1psPolarization Dependent Loss≤ 0.3dBChannel IsolationAdjacent ≥30dBNon-adjacent ≥ 45dBTemperatureOperating -40 to 85°C Storage -40 to 85°C Net WeightLGX BOX 0.5KG2Slot 1u Rack 2.5KGDimensions (HxWxD)LGX BOX 190*200*39mm2Slot 1u Rack 44*440*230mm Note: Specified with connectors.Order Information Product No.Product descriptionCMD8-1U01-4761MCWDM MUX DEMUX 8CH (1470nm~1610nm) With EXP And Monitor Port, Dual fiber, LC/UPC , Plug-in LGX BoxCMD8-1U01-xxxxMCWDM MUX DEMUX 8CH (xxxx-xxxx) With EXP And Monitor Port, Dual fiber, LC/UPC , Plug-in LGX Box (Customized)1U02-2LGX19" inch 1U rack with 2 slot for Plug-in LGX box, 440*230*44mm Note: We Support Customized Design, please contact us by email.FIBCONET boasts three state-of-the-art manufacturing centers covering over 10,000 sqm in Ningbo, Guizhou, and Northeast China, with a team of 800 highly skilled engineers and staff members. With a production capacity of 300,000 PLC Splitters and 10 million fiber optical connectors per month, FIBCONET has earned a reputation as a national high-tech enterprise that excels in innovation, securing 50 patents and 15 invention patents.Our PLC splitter, for instance, can function optimally even in extremely cold conditions of up to -50 centigrade degrees, making it an ideal solution for clients operating in harsh environments like Russia. We also offer connectors with an insert loss of just 0.1 dB, a rarity in the industry that we can deliver.Q: The History of our factory? A: In 2000, Fibconet entered the communications industry and began to make adapters. It accumulated funds to invest in jumper production in 2006 and increased the optical splitter workshop in 2009. Fibconet won the national high-tech industry in 2013, sold over 15 million US dollars in 2015, and began to explore foreign markets.Q: The location of our factory? A: Our factory is located in Ningbo, Zhejiang, and our new factory has also been put into production, located in the Northeast (Jilin Province).Q: An occupied area for our factory?A: The construction area of our factory is about 23,000 square meters, including 8000 square meters in Fenghua Plant and 15,000 square meters in Northeast China.Q: Production capacity for the PLC splitter? A: 800,000 pcs per month.Q: What's your best price for your passive fiber optic product?A: Based on the quality of our products and the quantity of your estimated. We would quote the great best matching price all the time.Q: Do you offer a guarantee for the products? A: Yes, we offer a 1-2 years warranty on our formal products. /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
