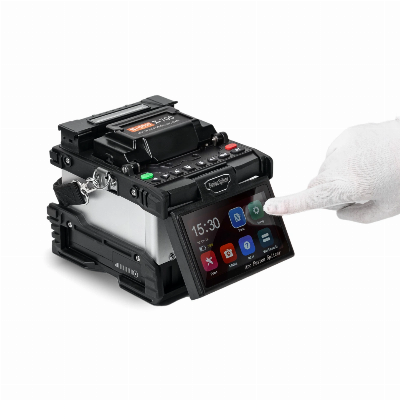

X-700 Cheap Tool Kit Optical Splicing Machine Fiber Optic Fusion Splicer

Product DescriptionsWe're  a professional manufacturer of fusion splicers, OEM is available. We also offer related products, such as OTDR, power meter, light source, VFL, toolkit etc.Features*6s typically for splicing and 26s for heating,*Fiber core max. magnifications up to 250X,*Electrodes discharging more than 4000 times,*Integrated heater,easy and convenient to operate,*USB port for software updating and data records exporting,*PAS image digital processing system, core to core alignment,*ARC calibrated by temperature and air pressure automatically,*360° rubber armor protects machine from shock, water and dust,*5800mAh and pluggable Li-battery,typical 200 cycles splicing and heating,*Multi-function holder clamps, suitable for bare fibers, drop cables, patch cords etc.X-700 Fusion Splcier Data SheetApplicable fiberSM(G.652), MM(G.651), DS(G.653), NZDS(G.655), others(including G.657)Fiber countSingleApplicable fiber dimensionsCladding diameter: 80 -150μm, Coating diameter: 160 -900μmTypical splice loss0.02dB(SM), 0.01dB(MM), 0.04dB(DS), 0.04dB(NZDS)Return loss>60dbFiber cleaved length10-16mm (coating diameter< 250μm ), 16mm(coating diameter: 250-1000μm )Splicing program40 groupsOperate modeManual, AutomaticAuto-heatingAvailableTypical splicing time8 secondsTube heating time26 seconds for 60mm and 40mm shrinkable sleevesFiber view magnification250X(X or Y view), 125X(X and Y view)Viewing method and display2 CMOS cameras, 4.3 inch color LCD monitorStorage of splice result4000 resultsLoss evaluationAvailableTension test1.8-2.2NInterfaceGUI menu interface, easier operationBattery capacity5800mAh, typical 180 cycles(splice and tube heat), pluggable inner Li-batteryPower supplyAdaptor, input: AC100-240V(50/60HZ)Electrode lifeMore than 4000 ARC discharges, can be replaced convenientlyTerminalsUSB 2.0 port, for uploading splice results and upgrading softwareOperating conditionAltitude: 0-5000m, Humidity: 0-95%, Temperature: -10ºC~+50ºC;Wind speed: max 15m/sDimension149mm(L)x120mm(W)x127mm(H)Weight1.9kg including batteryPacking&ShippingDelivery leading periodWithin 3 working days for small orders after receiving full payment;Kindly consult us for bulk orders.ShipmenChoosing DHL, FedEx, TNT, EMS, UPS and other Express, delivering to your hands directly for small orders;By sea or by aircargo for bulk orders.After-sales ServicesWe guarantee that every fusion splicer is tested carefully and works very well before shipment. We strive for 100% customer satisfaction on every sale we complete.We are responsible for the whole lifespan of our products, and whenever you have questions during usage, feel free to contact us, we are glad to provide technical support timely.We guarantee all our fusion splicers for 12 months from the date customers receive them. Other parts for six months. During the warranty period, we can repair or replace the defective parts for free. After the warranty time, we can also repair the defective parts, but only charge for parts.Details of X-700 fusion splicer appearence Standard accessoriesProduction and Test                                          Waterproof & Anti-dust & Stale fusionCompany ProfileShinho Fiber Communication Co., Ltd is a professional OEM manufacturer of fiber optic fusion splicers. Besides, Shinho could also supply other related test equipment, like palm OTDRs, power meters, VFLs, light sources, fiber identifiers, toolkits, cleavers, etc. Shinho X-series of optical fiber fusion splicers have Independent Intelligent Property Right (IIPR). They have advanced functions and stable performance, and their splicing loss could reach the top level in the world. After several years' development, Shinho products are broadly acknowledged and trusted by different clients around the world, like USA, South America, Russia, India, Pakistan, Europe, Middle East, South Africa, etc. Shinho would keep researching and developing the top level fiber optic fusion splicers, providing the excellent and quick service to our customers.shinhofiber.en.made-in-china.comTel: 0086 21 5657 1083 /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
