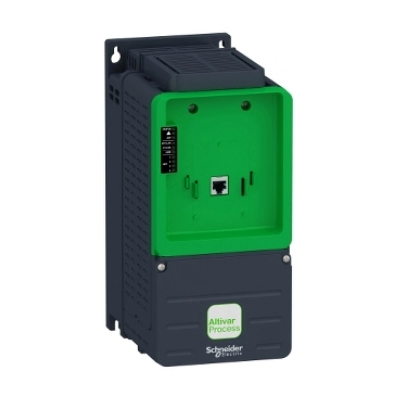

Schneider Frequency Inverter Drive, Altivar Process ATV630 (ATV630U75N4Z) (ATV630U40N4Z)

ATV630U75N4ZRange of ProductAltivar Process ATV600Product or Component TypeVariable speed driveProduct Specific ApplicationProcess and utilitiesDevice short nameATV630VariantStandard versionProduct destinationAsynchronous motorsSynchronous motorsEMC filterIntegrated 32.81 ft (10 m) EN/IEC 61800-3 category C2Integrated 164.04 ft (50 m) EN/IEC 61800-3 category C3With EMC plate optionIP degree of protectionIP20IEC 61800-5-1IP20IEC 60529[Us] rated supply voltage380...480 VType of coolingForced convectionSupply frequency50...60 Hz - 5...5 %[Us] rated supply voltage380...480 V - 15...10 %Motor power kW7.5 kW normal duty)5.5 kW heavy duty)Maximum Horse Power Rating10 hp normal duty7.5 hp heavy dutyLine current13.8 A 380 V normal duty)11.9 A 480 V normal duty)10.5 A 380 V heavy duty)9.2 A 480 V heavy duty)Prospective line Isc50 kAApparent power9.9 kVA 480 V normal duty)7.6 kVA 480 V heavy duty)Continuous output current16.5 A 4 kHz normal duty12.7 A 4 kHz heavy dutyAsynchronous motor control profileVariable torque standardOptimized torque modeConstant torque standardSynchronous motor control profilePermanent magnet motorSynchronous reluctance motorSpeed drive output frequency0.1…500 HzNominal switching frequency4 kHzSwitching frequency2...12 kHz adjustable4...12 kHz with derating factorSafety functionSTO (safe torque off) SIL 3discrete input logic16 preset speedsCommunication Port ProtocolEthernetModbus serialModbus TCPOption cardSlot A communication module, Profibus DP V1Slot A communication module, PROFINETSlot A communication module, DeviceNetSlot A communication module, Modbus TCP/EtherNet/IPSlot A communication module, CANopen daisy chain RJ45Slot A communication module, CANopen SUB-D 9Slot A communication module, CANopen screw terminalsSlot A/slot B digital and analog I/O extension moduleSlot A/slot B output relay extension moduleSlot A communication module, Ethernet IP/Modbus TCP/MD-Linkcommunication module, BACnet MS/TPcommunication module, Ethernet PowerlinkATV630U40N4ZRange of ProductAltivar Process ATV600Product or Component TypeVariable speed driveProduct Specific ApplicationProcess and utilitiesDevice short nameATV630VariantStandard versionProduct destinationAsynchronous motorsSynchronous motorsEMC filterIntegrated 32.81 ft (10 m) EN/IEC 61800-3 category C2Integrated 164.04 ft (50 m) EN/IEC 61800-3 category C3With EMC plate optionIP degree of protectionIP20IEC 61800-5-1IP20IEC 60529[Us] rated supply voltage380...480 VType of coolingForced convectionSupply frequency50...60 Hz - 5...5 %[Us] rated supply voltage380...480 V - 15...10 %Motor power kW4 kW normal duty)3 kW heavy duty)Maximum Horse Power Rating5 hp normal duty4 hp heavy dutyLine current7.6 A 380 V normal duty)6.7 A 480 V normal duty)6 A 380 V heavy duty)5.4 A 480 V heavy duty)Prospective line Isc50 kAApparent power5.6 kVA 480 V normal duty)4.5 kVA 480 V heavy duty)Continuous output current9.3 A 4 kHz normal duty7.2 A 4 kHz heavy dutyAsynchronous motor control profileVariable torque standardConstant torque standardOptimized torque modeSynchronous motor control profilePermanent magnet motorSynchronous reluctance motorSpeed drive output frequency0.1…500 HzNominal switching frequency4 kHzSwitching frequency2...12 kHz adjustable4...12 kHz with derating factorSafety functionSTO (safe torque off) SIL 3discrete input logic16 preset speedsCommunication Port ProtocolEthernetModbus serialModbus TCPOption cardSlot A communication module, Profibus DP V1Slot A communication module, PROFINETSlot A communication module, DeviceNetSlot A communication module, Modbus TCP/EtherNet/IPSlot A communication module, CANopen daisy chain RJ45Slot A communication module, CANopen SUB-D 9Slot A communication module, CANopen screw terminalsSlot A/slot B digital and analog I/O extension moduleSlot A/slot B output relay extension moduleSlot A communication module, Ethernet IP/Modbus TCP/MD-Linkcommunication module, BACnet MS/TPcommunication module, Ethernet PowerlinkMore Products Model Model powerModelpowerModelpowerModelpwerModelATV610U07N40.75KWATV610U40N4Z4.0KWATV630D11N4Z11KWATV630D55N455KWATV930D55N4ZATV610U15N41.5KWATV610U55N4Z5.5KWATV630D15N4Z15KWATV630D75N475KWATV930D75N4ZATV610U22N42.2KWATV610U75N4Z7.5KWATV630D18N4Z18.5KWATV630D90N490KWATV930D90N4ZATV610U30N43.0KWATV610D11N4Z11KWATV630D22N4Z22KWATV630C11N4110KWATV930U07N4ATV610U40N44.0KWATV610D15N4Z15KWATV630D30N4Z30KWATV630C13N4132KWATV930U15N4ATV610U55N45.5KWATV610D18N4Z18.5KWATV630D37N4Z37KWATV630C16N4160KWATV930U22N4ATV610U75N47.5KWATV610D22N4Z22KWATV630D45N4Z45KWATV630C22N4220KWATV930U30N4ATV610D11N411KWATV610D30N4Z30KWATV630D55N4Z55KWATV630C25N4250KWATV930U40N4ATV610D15N415KWATV610D37N4Z37KWATV630D75N4Z75KWATV630C31N4315KWATV930U55N4ATV610D18N418.5KWATV610D45N4Z45KWATV630D90N4Z90KWATV930ATV930U75N4ATV610D22N422KWATV610D55N4Z55KWATV630U07N40.75KWATV930U07N4Z0.75KWATV930D11N4ATV610D30N430KWATV610D75N4Z75KWATV630U15N41.5KWATV930U15N4Z1.5KWATV930D15N4ATV610D37N437KWATV610D90N4Z90KWATV630U22N42.2KWATV930U22N4Z2.2KWAT
