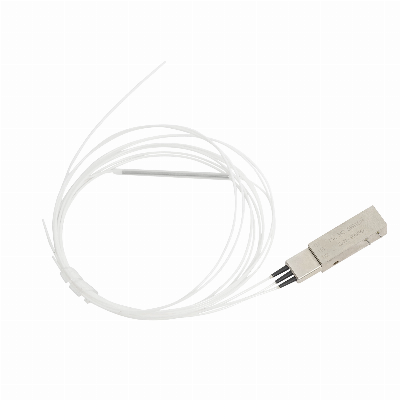

Ziguan photonics' 1x2or 2x1 optical switch is an all solid-state device without any moving parts. The switching of the optical light is realized by utilizing Faraday Effect.This is achieved using a patent protected non-mechanical configuration with solid-state all-crystal design which eliminates the need for mechanical movement. The microsecond fiber optic switch is designed to meet the most ItemUnitParametersNotesWavelength Rangenm1525~1565Other band optionalInsertion LossdB0.7(Typ.); 1.1 (Max.) PDLdB0.1 (Typ.); 0.2 (Max.) Return LossdB40 Cross-talkdB40Typical >50dBPMDps0.2 RepeatabilitydB+/- 0.01 Durabilitycycles>100Billions Switching Speedμs10~30/200~400Other speed optionalStorage TemperatureP0PC-40~85 Operating TemperatureP0PC-5~70 Maximum Optical PowermW500 High power optionalDimension( L×W×H )mm28×9.5× 7.8 Note:1.All the specifications are based on the devices without connectors, and guarantee it within the wavelength, polarization and temperature range. Dimension(mm)Electrical SpecificationsParametersSpecificationsUnitRegularUltra-fastSwitching Speed200~40010~30μsSwitching Voltage (VCC)5 (+/-5%)6.0~7.0VSwitching Current< 100< 350mADriving ModeVoltage or Pulse DrivingPulse DrivingNAPulse Width (typical)100020μsClaim Frequency
