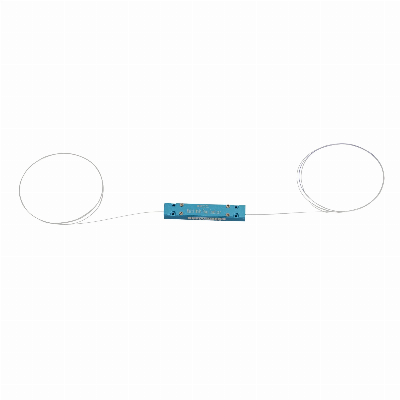

Professional Product N× 1 Multi-Mode Pump Combiner (MPC) and Signal Combiner

DescriptionThis N×1 multi-mode fiber combiner is designed for high power fiber laser application. It combines N pump lasers into one double cladding output fiber. Fiber type can be customized.   Key featuresHigh pump efficiencyWavelength insensitiveCustom configurations availableMechanical dimension C4: 70x12x8                                              C7: 100x15x10   Unit: mmSpecifications Parameters/Test conditionsMinTyp.Max.UnitNotes1Pump operating wavelength800 1000nm 2Pump fiberCore diameter 105 µmRefer to fiber codes. 3Cladding diameter 125 µm4Numerical aperture0.22-  Configuration(Nx1)Pump Efficiency(%) Power Handling(W, each port) 5Outputfiberx/125 DCF (x=6,10,…)3x1>93(Typ. 95)2525/250 DCF7x1>93(Typ. 95)5020/400 DCF7x1>95(Typ. 97)10025/250 DCF19x1>88(Typ. 90)2020/400 DCF19x1>93(Typ. 95)506Fiber length0.8  mEach port7Operating environment temperature-5 +70ºC 8Operating humidity5 95%RHNot recommend in highhumidity for long time.9Storage temperature-40 +85ºC 10Packaging dimensionC4, C7-Handling power isdifferent with PKGOrdering information MPC-N×1- Pump wavelength/Pump power- Pump fiber -Output fiber-Package-Fiber length  Note :   N: Pump port number. Pump/Output fiber: refer to fiber codes. Package: C4, C7   C4: total power < 150W, C7: total power >= 150W  /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
