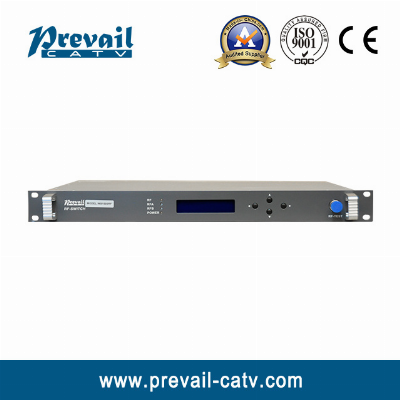

CATV 1GHz 1u RF Switch

1. Product Summary WS1000RF series RF switch is suitable for backup switch in CATV headend room. The maximum operating bandwidth is up to 1GHz. Adopt high performance and reliability switching devices and built-in embedded automatic monitoring system, it can monitor remotely by network management system.   2. Performance Characteristics Low insertion loss, fast switching, high isolation in the entire passband.Support automatic and manual switch modes.LCD displaying on the front panel; support national standard grade II network management transponder. 19″1U standard rack, hot backup dual power supply modules optional.  3. Technique ParameterElectrical CharacteristicsItemUnitTechnique parameterOperating frequency bandMHz5~1003Insertion lossdB≤2Flatness in banddB±0.75IsolationdB70Input impedanceΩ75Output impedanceΩ75RF connector F type (Female/male is specified by the user)Input return lossdB≥16Output return lossdB≥16Longest switch timems15General CharacteristicsOperating temperatureºC-20~+50Relative humidity%0~85Power supply voltageVAC220V (dual power supply feed Optional)ProcessCompany ProfileContact us  /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
