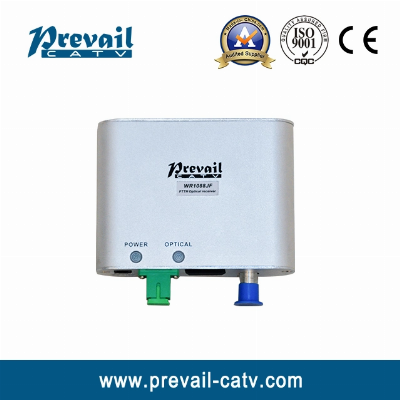

CATV FTTH Mini Optical Receiver Node

Product SummaryWR1088JF series optical receiver is a featured product which is specially designed for FTTH--Fiber to the Home network structure. With small housing, compact and reasonable internal circuit structure and excellent performance indicators. It is the first choice for residential area and home fiber optic network.There are three models optional:WR1088JF-NC: The RFTV operating wavelength is 1100 ~ 1600nm.WR1088JF-WF: Built-in optical signal filter, the RFTV operating wavelength is 1550nm.WR1088JF-WD: Built-in CWDM, RFTV operating wavelength is 1550nm. Pass 1310/1490nm wavelength. Can be connected with EPON, GPON and ONU. Performance CharacteristicsAdopt low noise GaAs amplifier device. MCU control optical AGC, independent adjustable output.5V DC voltage power supply, low power consumption.Built-in the Ethernet transponder, support remote network management (optional).Technique ParameterItemUnitTechnical ParameterOptical ParametersOptical Receiving PowerdBm-18 ~ 0AGC RangedBm-12 ~ -3Optical Return LossdB> 45Optical Receiving Wavelengthnm1100 ~ 1600Optical Connector Type SC/APC or specified by the userFiber Type Single ModeLink PerformanceC/NdB≥ 47 @Pin= -6dBm, Pout= 82dBμV, 84CH PAL-D, OMI=3.8%C/CTBdB≥ 65C/CSOdB≥ 60MERdB>32@Pin= -15dBm, 96CH DIGTAL 64QAM>29@Pin= -18dBm, 96CH DIGTAL 64QAMRF ParametersFrequency RangeMHz45~1003Flatness in BanddB±0.75Output LeveldBμV≥ 82 (AGC: @-12~ -3dBm)Output ATT rangedB0~20 Output Return LossdB≥ 16Output ImpedanceΩ75ConsumptionW
