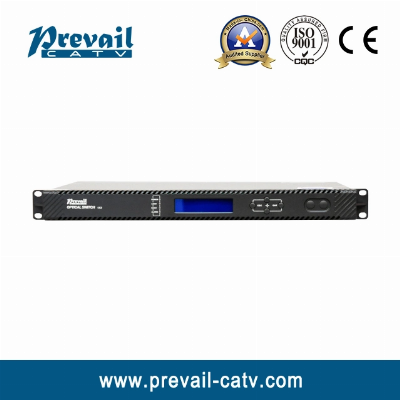

CATV Optical Switch 1200~1600nm

1. DescriptionsWS-1524J series optical switches are mainly used for backup optical signals switching in front end or secondary front end machine room. WS-1524J-I is the ordinary type, while WS-1524J-II is the enhanced type that adds RF detection function on the basis of ordinary type.2. FeaturesAutomatic switch or manual switch.19″1U standard rack, LCD display on the front panel.Support Ethernet transponder.  3. SpecificationsOptical Operating Wavelength: 1200 ~ 1600nm Optical Input Power Range: -15 ~ +24dBmMax Switching Time: ≤ 10ms Insertion Loss: ≤1.3dB(tested on points 1310nm, 1490nm and 1550nm)  4. General FeaturesConsumption: ≤ 2WOperating Temperature: -5 ~ +55ºC Operating Voltage: AC 160 ~ 250V (50Hz) Dimension: 483mm(L)X 270mm(W)X 44mm(H)  Note: More detailed product introduction and index parameters see the product manual.Item Unit Technique Parameter Remark Wavelength nm 1200 - 1600  Insertion loss dB ≤ 1.3 1310nm/1490nm/1550nm Switching time ms ≤ 5  Back wave loss dB ≥ 55  Max input optical power mW 500  Switching life  ≥ 1000times  Optical connector type  FC/APC or SC/APC  Supply voltage V AC160V - 250V (50 Hz  ) /DC-48V  Consumption W ≤ 2  Operating temperature º C -5 - +55  Max relative humidity for working % Max 95% No condensation  Storage Temperature º C -30 - +70  Max relative humidity for storage % Max 95% No condensation  Dimension mm 483(W) × 270(L)× 44 (H)  ProcessCompany ProfileContact us  /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
