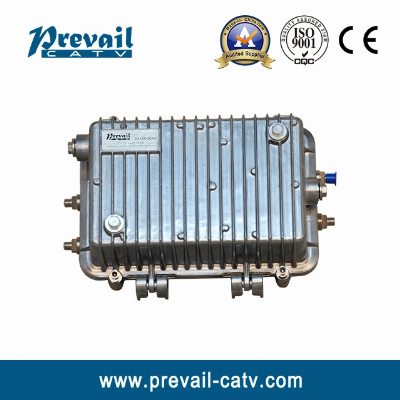

CATV RF Outdoor Modular Bi-Directional Amplifier Wa1300-Ceam

1. Product SummaryWA1300CEAM series outdoor bi-directional trunk amplifier is the new developed high-gain amplifier. Mature and optimized circuit design, scientific and reasonable internal process and high quality materials, ensure the stable gain and low distortion. It is the best choice for building large or middle-sized CATV bi-directional transmission network. 2. Performance CharacteristicsThe forward path preceding stage adopts the newest high index imported low noise push-pull amplifier module or GaAs push-pull module, output stage adopts the newest high index imported power doubly amplifier module or GaAs amplifier module. The nonlinear index is good and output level is more stable. The return path adopts the newest high index imported return dedicated amplifier module. The distortion is low and the signal to noise ratio is high.It is more convenient to debug because of the plug-in duplex filter, plug-in fixed (or adjustable) equalizer and attenuator, and the scientific and reasonable on-line detection ports.The equipment can long time continuous work steadily under outdoor bad environmental condition. Because of the aluminum waterproof housing, high reliability switching power supply and strict lightning protection system.The shell adopts embedded modular design; equipment maintenance, replacement, and debugging are convenient.3. Performance ParametersItemUnitTechnical ParametersForward PathFrequency rangeMHz47/54/85-862/1003Rated gaindB3034363840Minimum full gaindB≥30≥34≥36≥38≥40Rated input leveldBμV72Rated output leveldBμV108Flatness in banddB±0.75Noise figuredB≤10Return lossdB≥16AttenuationdB1-18 (Fixed insert,1dB stepping, specified by the user)EquilibriumdB1-15 (Fixed insert,1dB stepping, specified by the user)C/CTBdB70Test condition: 84 channels signal,output level: 85MHz/550MHz/860MHz.99dBuV/105dBuV/108 dBuVC/CSOdB68Group delayns≤10  (112.25 MHz/116.68 MHz)AC hum modulation%< 2%Gain stabilitydB-1.0 ~ +1.0  Return PathFrequency rangeMHz5 ~ 30/42/65Rated gaindB≥20Minimum full gaindB≥22Maximum output leveldBμV≥ 110Flatness in banddB±0.75Noise figuredB≤ 8Return lossdB≥ 16Carrier to second-order inter-modulation ratiodB≥ 52Test Condition: Output level 110dBuV,test points: f1=10MHz, f2=60MHz, f3=f2-f1=50MHzGroup delayns≤ 20  (57MHz/59MHz)AC hum modulation%< 2%General PerformanceCharacteristic impedanceΩ75Test portdB-20±1Power supply voltageVA:AC(135 ~ 250)V;B:AC(45 ~ 90)VImpulse withstand voltage(10/700μs)kV> 5Power consumptionW35Dimensionmm295(L)x 210(W)x150(H)*Note: The forward RF indicators above are measured when adopt NEC module.  Different modules, different parameters. Product Processabout uscontact us  /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
