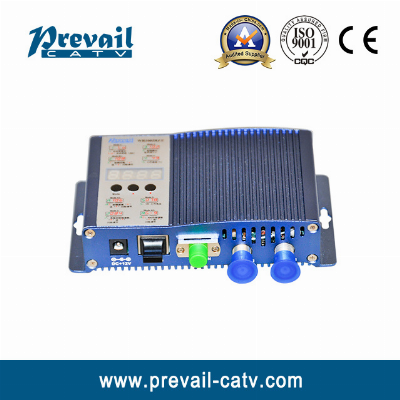

CATV FTTB FTTH 1GHz Indoor Optical Receiver Node1. Product SummaryWR1002RJII optical receiver is our latest 1GHz FTTB optical receiver. With wide range receiving optical power, high output level and low power consumption. It is an ideal equipment to build the high-performance NGB network. There are three models optional: WR1002RJII/NC: The RFTV operating wavelength is 1100 ~ 1620nm. WR1002RJII/WF: Built-in optical signal filter, the RFTV operating wavelength is 1550nm. WR1002RJII/WD: Built-in CWDM, RFTV operating wavelength is 1550nm. Pass 1310/1490nm wavelength. Can be connected with EPON, GPON and ONU. 2. Performance Characteristics Adopt advanced optical AGC control technique, the maximum AGC control range (adjustable) is -9~+2dBm; RF amplifier part adopts the high performance low power consumption GaAs chip, the highest output level up to 112dBμV; EQ and ATT both use the professional electric control circuit, make the control more accurate, operation more convenient; Built-in the Ethernet transponder, support remote network management (optional); Compact structure, convenient installation, is the first choice equipment of FTTB CATV network; External high reliability low power consumption power supply; 3. Technique Parameter ItemUnitTechnical ParametersOptical ParametersReceiving Optical PowerdBm-9 ~ +2Optical Return LossdB>45Optical Receiving WavelengthNm1100 ~ 1600 or 1530 ~ 1620Optical Connector Type SC/APCFiber Type Single modeLink ParametersC/NdB≥ 51Note 1C/CTBdB≥ 60C/CSOdB≥ 60RF ParametersFrequency RangeMHz45 ~862/1003Flatness in BanddB±0.75Rated Output LeveldBμV106 (FZ110)102 (FP204)Max Output LeveldBμV112 (-7 ~ +2 tap)108 (-7 ~ +2 two-way splitter)Output Return LossdB≥16Output ImpedanceΩ75Electrical control EQ rangedB0~15Electrical control ATT rangedB0~15General CharacteristicsPower VoltageVDC12V/1AOperating TemperatureºC-40~60ConsumptionVA≤7.5Dimensionmm142(L)* 98(W)* 36(H)Note 1: Configure 59 PAL-D analog channel signals in the 550MHz frequency range. Transmit digital signal in the frequency range of 550~862/1003MHz. The digital signal level (in 8 MHz bandwidth) is 10dB lower than analog signal carrier level. When the optical input power of the optical receiver is -1dBm, the output level: 106dBμV, EQ: 8dB. Company IntroductionProcessExhibition /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
