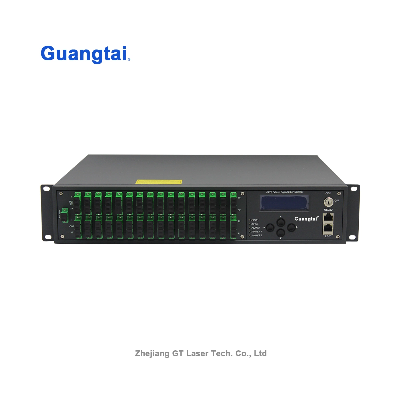

Guangtai High Power 1550 Built in CWDM CATV EDFA Optical Amplifier Ha5800

HA58001550 Built in CWDM CATV EDFA Optical Amplifier(1540~1563nm)Product DescriptionHA5800 series is a low noise, high performance, FTTP high power multi-ports optical amplifier EDFA with gain spectrum band within 1540~1563nm. Each output port for optical amplifier has built-in well-performed CWDM. Every external up-link optical port of optical amplifier can connect with OLT very conveniently. Each 1550nm (CATV)'s out-put optical port multiplexes 1310/1490n's data stream, in order to reduce the quantity of the component and improve the datasheet and reliability of the system. HA5800 optical amplifier can be compatible with any FTTx PON Technology. It offers a flexible and low-cost solution for CATV large area coverage of metropolises and medium-sized cities.Product Features1. 1540~1563nm operating bandwidth for FTTx PON CWDM EDFA optical amplifier2. 500mW~80000mW (27~49dBm) high output power3. Low noise subnumber ( Typ ≤4.5dB, Max ≤5.0dB, Output ≥37dBm )4. 8~256 uplink optical port, used in OLT5. 8~2561550nm output optical port, multiplex 1310/1490nm data stream6. Can be compatible with any FTTx PON Technology:EPON/GEPON, GPON7. Perfect RS232, SNMP8. Efficient space, flexible installation and easy operation9. Excellent P/P ratioMain Application1. FTTx PON2. RFoGTechnical IndexPerformanceIndexSupplementMin.Typ.Max.OpticalfeatureCATV operation wavelength(nm)1540 1564CATVOLT pass wavelength(nm)1310/1490 CATV pass wavelength loss(dB)  0.81550nmOLT pass wavelength loss(dB)  0.81310/1490nmCATV & OLT isolation(dB)40   Number of uplink optical ports (for OLT)(pcs)  161U  642U  1283U  2565UCATV input power (Pi)(dBm)-10 +10 Noise figure(dB) 4.55.0Pin=0dBmTotal output power1)(dBm)  371U  382U  453U  495UNumber of output ports(pcs)  161U  642U  1283U  2565UEach port output power(dBm)0 22 Difference of each output power(dB)-0.5 +0.5 Output power adjustable range(dBm)-6 0 Polarization dependence loss(dB)  0.3 Polarization dependence gain(dB)  0.4 Polarization mode dispersion(ps)  0.3 Input/output isolation(dB)30   Pump power leakage(dBm)  -30 Echo loss(dB)55  APCGeneralfeatureNetwork management interface RJ45 Serial interface RS232 Power supply(V)90 265220VAC30 72-48VDCPower consume(W)  50HA5800A  84HA5800B  189HA5800C  289HA5800EOperation temp.(°C)-5 65 Storage temp.(°C)-40 80 Relative humidity(%)5 95 Size (W)×(D)×(H)(")19×14.7×1.751RU (19")19×14.7×3.52RU (19")19×14.7×5.253RU (19")19×14.7×8.755RU (19") Flow ChartShipping ModeFAQ1. What are the payment terms of payment?Usually, we accept T/T, PayPal, Western Union, and Alibaba Trade Assurance. You can select the terms of payment which is more convenient for you.2. What about the lead time?Usually, if there's stock, we ship the goods within 5-7 working days after the deposit is confirmed. If it is out of stock, the lead time depends.3. How about the shipping?When the package is small, we will deliver the goods via international Express like FedEx , DHL,TNT and UPS and so on. Door to door delivery service will be provided; while the goods have high weight and volume, we suggest using air or sea shipment.4. Can you do OEM for us?Yes. if there is a certain order quantity, we can do OEM including printing, logo, and customized model for you.5. What are the advantages of your products?A. Good quality and competitive pricesB. Strict quality control during production process.C. Professional operations in processes of production, sales, assembling, packaging and shippingD. Good after-sale service. Professional online technical support can be provided. Moreover, if there is any problem of the goods, we will help to solve the problem or provide replacement of the goods6. How about the Warranty?There are 12 months for the warranty. While the warranty is not responsible for those broken by violence or updated with other brands.    /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
