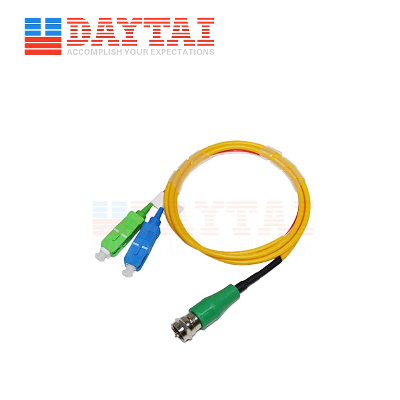

FTTH CATV Mini Passive FTTH Wdm Optical Receiver RF AGC Optical Node ★Description Passive FTTH WDM (CATV+PON) Optical Receiver (SC-F Male) for Digital TV,input Optical Power:-10 ~ +2dBm,Optical Return Loss:>45db,Optical Receiver Wavelength:1550±10nm,Optical Fiber Type:Single Mode,Frequency Range:40-1000MHZ,SC/APC to F Male connector,Dimensions:36*13 mm,Net weight:0.02KG.★Features⊙Designed for triple play FTTH⊙PVC Casing(Color can be customized)⊙Much smaller size and very easy install⊙Frequency range 40-1000MHz For CATV Network⊙ RF Interface for CATV End-Users (M-Male or F-Female )⊙Built-in WDM, suitable for single-fiber triple wavelength system,⊙RFTV operating wavelength 1550nm, pass wavelength 1310/1490nm, can conveniently connect the ONU of GEPON, GPON. ★Specification ItemUnitDescriptionRemarkCustomer InterfaceRF Connector75Ω "M-Male & F-Female" connector Optical Connector SC/APCCan be CustomizedInput Optical PowerdBm-10 ~ +2Digital TVOptical Return LossdB>45 Operating Wavelengthnm1550±10 ResponsivityA/W≥0.91310~1490nmOptical Fiber Type Single Mode Frequency RangeMHz40-1000 FlatnessdB±1dB RF Output LeveldBuV≤62-1dBm input powerOutput Return LossdB≥15 Output ImpedanceΩ75 C/NdBc>50-1dBm input powerPower Input VoltageVDC0 Power ConsumptionWN/A Dimensionsmm36*13 Net weightKG0.02 /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
