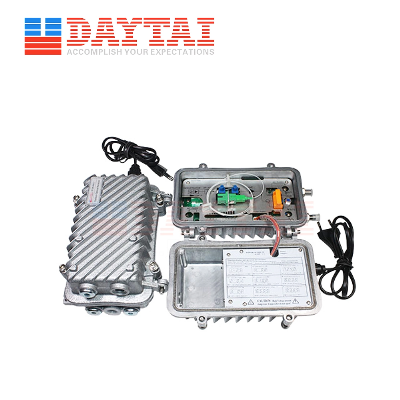

Outdoor 2 Way Output Optical Workstation with AGC Optical Receiver

DescriptionOptical Receiver With AGC Suitable For Drop Cable-(DT-DORA-8602:Frequency Range:47~862MHz,RF Output Level:≥102dBuV),(DT-DORA-8606:Frequency Range:47~862MHz,RF Output Level:≥106dBuV),(DT-DORA-1G06:Frequency Range:47~1000MHz,RF Output Level:≥106dBuV),Receiving optical wavelength:1290~1600nm,Receiving optical power:-8~+2,Optical connector type:SC/APC OR FC/APC,AGC:Optical control AGC,AGC Range:-6~+2 dBm,Optical return loss:≥45dBm,C/CTB:≥65(-1dBm receiving, 40 channels),C/CSO:≥60(-1dBm receiving, 40 channels),Frequency range:45~862MHz,Power:AC35~90V OR AC110~265V,Outer dimension: 240mm×150mm×110mm,Net weight:2.2Kg.With or Without SNMP is optional.Features ⊙ AGC function(-6~+2dBm).⊙10-section LED displays input optical power.⊙1310nm and 1550nm dual-window receiving.⊙Equipped AC60V sole power supply port, easy to operate.⊙Each port is equipped AC60V LED indicator light, easy to operate.⊙Output designed with adjustable attenuator and equalizer, easy to debug.⊙Output plug-in one-way tap or two-way splitter, easy to replace and operate.⊙Perfect surge suppression circuitry, which is effectively to prevent shock and lightning surge.⊙Built-in High-reliable switching power supply, small temperature rise, high conversion efficiency, wide voltage range. ⊙High-quality die-casting aluminum housing, dust-proof, water-proof, shield and good heating performance, convenient to install.⊙SNMP component can be selected for installation to achieve remote control on working status and performance Parameter.SpecificationItemsUnitParametersDT-DORA-8602DT-DORA-8606DT-DORA-1G06RF output ports 2Wavelength range nm1290~1600Optical connector -FC/APC or SC/APCInput optical power rangedBm-8~+2AGC Function -Optical control AGCAGC ScopedBm-6~+2 dBmOptical return lossdB≥50In-band flatnessdB±0.75Frequency rangeMHz47~86247~1000RF output level dBµV≥102dBuV≥108dBuV≥110dBuVRF output impedance  Ω75Attenuator adjusted range dB0~20Equalizer adjusted rangedB0~18Output return lossdB≥16(47~550MHz);≥14(550~862MHz)C/NdB≥51(-1dBm receiving, 59chs PAL-D)C/CTB dB≥65(-1dBm receiving,59chs PAL-D)C/CSOdB≥60(-1dBm receiving, 59chs PAL-D)Power supply  VAC35~90 or AC110~265Consumption  W12(max)15(max)15(max)Operating temperature  ºC-40~+55Dimension mm240×150×110Net weight Kg2.2Q1:What's the delivery time?Re:The lead time is 15-20days after order confirmed.Q2:Can you send me a free sample?Re: We are willing to send you free sample,if you would like to pay the shipping costs.Q3:What's your payment terms?Re: 30% in advance, and 70% before shipment.Q4:What's the payent method?Re: We accpet T/T, Western Union, Paypal.Q5:How to ship the items to me?Re: Courier (DHL , TNT , FEDEX , UPS , EMS ) , By Air, By Sea are available.  /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
