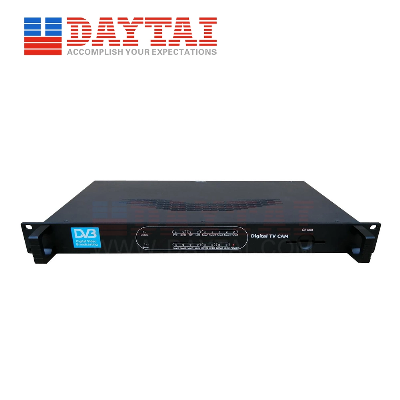

HTTP IPTV Digital TV Program Gateway Device Digital TV Cam

★DescriptionThis product is a digital TV program gateway device. It can collect encrypted/free satellite/cable/terrestrial channels, convert them into HTTP IPTV output, UDP multicast output. The output signal can be watched by IPTV STB. IP output signal also can be sent to DVB-T or DTMB modulator. The modulator output DVB-T signal can be watched by DVB-T STB, or DVB-T TV directly.★Feature⊙ 5 Tuner inputs (DVB-C, T, S/S2 Optional)⊙ Support maximum 128 PID mapping per input⊙ IP (48 SPTS) over UDP and RTP/RTSP output;⊙ Remote control and Firmware, NMS management⊙ One CAM can decrypt multiple programs from Tuners/ASI/IP ★Specification ItemsSpecificationsInputInput5x RF (DVB-C, T/T2, S/S2 optional), F typeTuner inputDVB-CStandardJ.83(DVB-C), J83B, J.83C Input frequency85~860MHz Constellation16/32/64/128/256 QAMDVB-TInput Frequency85~860 MHz Bandwidth6/7/8 MDVB-SInput Frequency950~2150MHz Symbol rate2-45Msps Signal Strength- 65- -25dBm Constellation1/2, 2/3, 3/4, 5/6, 7/8 QPSKDVB-S2Input Frequency950~2150MHz Symbol rateQPSK 1~45Mbauds;8PSK 2~30Mbauds Code rate1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 ConstellationQPSK, 8PSKOutputIP TS48*SPTS over UDP, RTP/RTSP.100Base-T Ethernet interface (unicast / multicast)SystemLocal interfaceIndicator lightRemote managementNMS ManagementLanguageEnglishGeneralPower supplyAC 100V~240VPower consumption
