850/1300/1310/1550nm Multi Mode OTDR

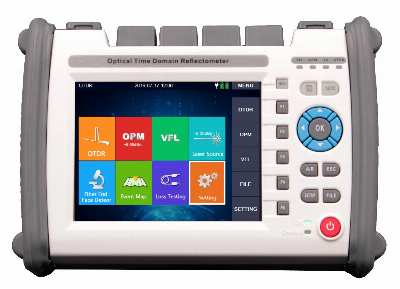

                                 850/1300/1310/1550nm Multi Mode OTDR    T-OT750 series tester is a comprehensive optical fiber measuring instrument developed by Skycom, to solve the measurement of various parameters of optical fiber. It mainly USES OTDR function and has other common measuring functions. Really reflected: ONE MACHINE, TESTING ALL!Main parameter characteristicsTouch-sensitive and solid physical button work together for perfect user experienceExcellent for short-range measurement,Dead zone:0.8m/4mMaximum sampling resolution:5cmSupport multiple analysis functions on testing results:Segment return loss,Event point return loss,Multi curves comparison, quick screen shots.Complete user data interface:USB(Type A),MINI USB,SD cardModel Specification. Model No.Wave Length(nm)Dynamic Range(dB)Deadzone(M)T-OT750-SM351310/1550/850/130035/32/22/26SM:0.8/4 MM:2/5ParameterPulse WidthSM3ns, 5ns, 10ns, 20ns, 50ns, 100ns, 200ns, 500ns, 1μs, 2μs, 5μs, 10μs, 20μsMM850mm:3ns,5ns,10ns,20ns,50ns,100ns,200ns,500ns,1us1300mm:3ns,5ns,10ns,20ns,50ns,100ns,200ns,500ns,1us,2usTest RangeSM100m,500m,2km,5km,10km,20km,40km,80km,120km,160km,240kmMM850mm:500m,2km,5km,10km1300mm:500m,2km,5km,10km,20km,40km,80kmMinimum sampling resolution0.05mMaximum sampling point256,000linearity≤0.05dB/dBLoss resolution0.001dBDistance resolution0.01mDistance accuracy±(1m+Range×3×10-5+Sampling resolution) (Regardless of the refractive index)Result Storage>16G SD card(Maximum support 128G),Store more than 100000 pieces of dataComplete user data interfaceUSB(Type A),MINI USB,SD cardMonitor5.6 "TFT LCD 640 * 480Battery7.4V/2500mAh X 2 lithium battery(Aviation certification)Working temperatureWorking temperature:-10ºC~+50ºC;Storage temperature:-20ºC~+70ºCRelative humidity≤95%(No condensation)Size and weight215×155×68mm/1.1kg(Including 2 batteries)VFL10KMS, 10mW,CW/2HzOPMOption A:-10dBm~-70dBm; Option B:+23dBm~-50dBmLaser sourceOutput:-5dBm±2dB,Frequency:CW/270Hz/1KHz/2KHzGPS/GNSSCustomizedWIFI/BluetoothCustomized   /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
