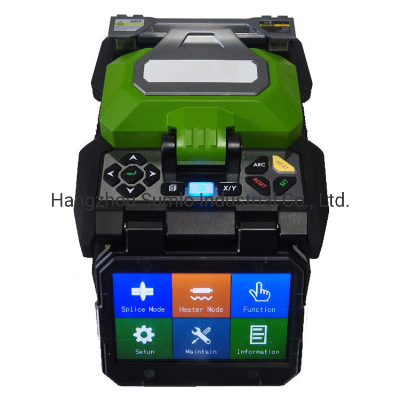

Optical Fiber Fusion Splicer FTTH Fiber Test Instrument

Optical Fiber Fusion Splicer FTTH fiber test instrument Descriptions:Obtaining 16 patents of invention and 5 technical innovations, a brand-new product-4106S Optical Fiber Fusion Splicer is launched, thanks to 5 years of painstaking research of 28 engineers.ZY4106S implements industrial-grade CPU+FPGA structure of high-performance, completely fresh HD optical fiber microscope, imported high-speed motor and aluminum-magnesium alloy materials extensively. Compared with ZY4106, our start product, ZY4106s lowers the size by 38%, the weight by 52%, the power consumption by 57%, but improves the speed by 60%, the environment adaptability by 80% and the reliability (MTBF) y 200%. You can get unprecedented fusion splicing experience.Technical data:  ModelZY4106Alignment methodPrecise core alignment and cladding alignmentApplicable fibersAny common optical fibers, rubber-insulated fibers and jumpers that meet requirements of ITU-TG.651-653, ITU-TG.655 and ITU-TG.657.Optical fiber diameterCladding: 80-150p m, coating layer: 0.1-3mmCutting length5-16mm (coated optical fiber diameter
