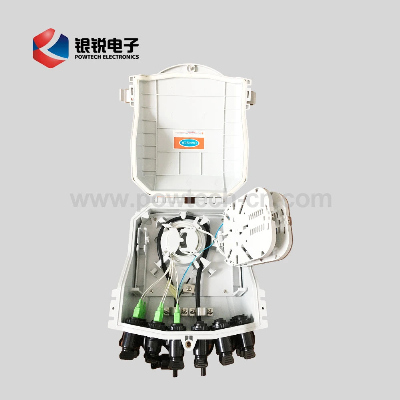

Hot Sales FTTH Outdoor Pre-Connected Fiber Access Terminal

Hot sales FTTH Outdoor Pre-connected Fiber Access TerminalProduct DescriptionDescription:The equipment is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.Features: 1. Total enclosed structure.2. Material:PC+ABS,wet-proof,water-proofdust-proof,anti-aging, protection level up to IP65.3. Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution...etc all in one.4. Cable,pigtails,and patch cords are running through their own paths without disturbing each other,micro type PLC splitter installation,easy maintenance.5. Distribution panel can be flipped up, feeder cable can be placed by expression port,easy for maintenance and installation.6. Box can be installed by the way of wall-mounted or poled-mounted,suitable for both indoor and outdoor use.Spec:1.Environmental requirementWorking temperature:-40ºC~+85ºCRelative humidity:≤85%(+30ºC)Atmospheric pressure:70KPa~106Kpa2.Main technical datasheetInsertion loss:≤0.15dBUPC return loss:≥50dBAPC return loss:≥60dB3.Thunder-proof technical datasheetThe insulation resistance between the grounding device and the metal parts of the box is no less than 2MΩ/500V(DC),IR≥2MΩ/500VThe voltage resistance between the grounding device,and the box and its metal parts is no less than 3000V(DC)/min, no puncture,no flashover,U≥3000VConfiguration table:Table 1 Model and configurationModelSpliving CapacityDescriptionSize(Pic 1)A*B*C(mm)Max Capacity Installation Size(Pic 2)Into the largest cable diameter(mm)D*E*FG*HFAT-W-1616 coreSpllitter Box208*241*11716(SC/APC)179*212*12621*5218   /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
