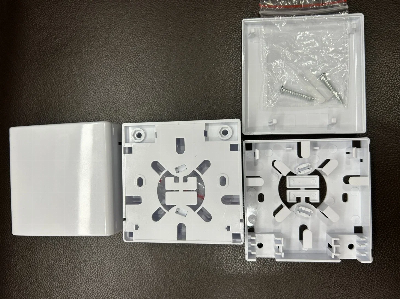

Atb 2 Core Fiber Access Terminal Box

ATB 2 Core Fiber Access Terminal BoxDescriptionThe ATB86 terminal box are used in the end termination of residential buildingsand villas or business applications;It can fix and splice with pigtails,max hold 2 pcs SC adapters, it mayadaptvariety of optical connection styles and the optical fiber can be managed effectively and quicklyinstalled within an office,house or communication room environment.   Applications1.Fiber to the home(FTTH)2.Fiber to the building(TFFB)3.Local area networks4.Wide area networks Features & Benefits1.Support termination, splicing and storage for fiber optic cable systems.2.Compact structure and perfect fiber management.3.Engineered fiber routing protect bend radius through the unit to ensure signal integrity.4.Applicable for desk-mount or wall-mounted and compatible with flush-mount outlet.5.Working Temperature: -25ºC~+60ºC; Atmospheric6.Pressure:70kPa~106kPa;7.Relative Humidity: ≤ 85%(+30ºC);8.Protection Degree: IP65;9.Connector Repeatability: >1000;10. Connector Specification: IL: ≤0.2dB; RL: ≥50dB;Technical ParameterAdapter Capacity02 AdaptersSplice Trays/Splice Capacity02 SplicesPorts1 Input Port / 4 Output PortsMaterialPC/ABSHeight86 mmWidth86 mmDepth27mmColorWhitePort Capacity2 ports, each port for 1 cable with max 10mmParameters:ModelCapacityTypeXX: AdapterXX: PigtailATB2BSC: SC/UPCSC: SC/UPCAS: SC/APCAS: SC/APCLC: LC/UPCLC: LC/UPCAL: LC/APCAL: LC/APC   Fiber optical  Characteristic (after cable) Fiber typeAttenuationBandwidthEffective modal bandwidth10 Gb/s Link LengthConditions1310/1550nm850/1300nm850/850nm850nmTypicalMaximumTypicalMaximum1300nmUnitdB/kmdB/kmdB/kmdB/kmMHz.kmMHz.kmmG652D0.5/0.40.6/0.5/////G657A10.5/0.40.6/0.5/////G657A20.4/0.30.5/0.4/////G657B30.5/0.40.6/0.5/////62.5/125//3.5/1.03.5/1.5≥160/500//50/125///3.0/1.03.5/1.5≥200/500//OM150/125///3.0/1.03.5/1.5≥500/500//OM2OM3-150//3.0/1.03.5/1.5≥700/500≥950150OM3-300//2.5/0.83.0/1.0≥1500/500≥2000300OM4-550//2.5/0.83.0/1.0≥3500/500≥4700550   PackageFAQ1. Can I visit you? -Sure,our factory is in Shenzhen ,China. Kindly contact us to make an appointment.2. How long is your delivery time?-Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.3. What is your payment terms?-Payment=3000USD, 30% T/T in advance ,balance before shippment.4. How about the warranty?-There are 12 months for the warranty. While the warranty is not responsible for those broken by violence or updated with other brands.5. Can you produce according to the samples?-Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.  /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
