Industrial Grade Digital Alalog Data Collect Transmission Profinet Remote Io

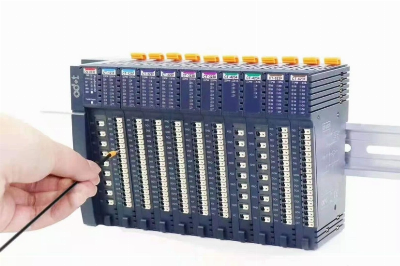

Product DescriptionRemote I/O system CN-8032 Network Adapter for Profinet protocol (Bus coupler)The CN-8032 Profinet network adapter supports standard Profinet IO Device Communication. The adapter supports MRP media redundancy, and it could realize ring network redundancy. And it supports RT/IRT real-time and synchronous communication mode, with its RT real-time communication minimum period of 1ms and IRT synchronous communication minimum period of 250us.The adapter supports a maximum input of 1440 bytes, a maximum output of 1440 bytes, and the number of the extended IO modules it supports is 32.Product ParametersHardware SpecificationSystem Power: Nominal: 24Vdc, Range: 9-36Vdc                          Reverse Protection: YESPower Consumption: 110mA@24VdcCurrent Output: Max:2A@5VdcIsolation: System Power to Field Power IsolationField Power: Nominal: 24Vdc, Range: 22-28Vdc                      Reverse Protection: YESField Power Contact:Max:8AExpansion Module:32 SlotsWiring: Max.1.5mm² (AWG 16)Mounting Type: 35mm DIN-RailSize: 115*51.5*75mmWeight: 130gEnvironment SpecificationOperational Temperature: -40~85ºCOperational Humidity: 5%-95% (No Condensation)Protection Class: IP20Profinet ParameterProtocol: Profinet IO DeviceI/O Data Size: Input Max.1440 Bytes, Output Max.1440 BytesRT: YES,Min.1msIRT: YES,Min.250usMRP: YESMRPD: NONetwork Interface: RJ45x2Speed: 10/100Mbps, MDI/MIDX, Full-DuplexDistance: 100mProfinet Device Name: DIP switch setting or Profinet monitor modifying TopologyDimensionWiring terminalInstallationDIN-railCompany ProfileApplication FAQ1.How could i get the manual, technical detail and software?You can click the software & manual page to download the realted product details or contact us to get it.2.Do you have after sale support?Yes we provide all the realted technical support including remote support.And We will provide you any necessary online training and support too.3. What is the warranty?All the ODOT products is with the warranty of 3 years.Only ODOT-S7PPI/PPI V2.0 is with a warranty of 1 year.4. How is the payment terms?100% T/T in advance.5. What is your shipping channel?We support all the main stream courier company including: Fedex,  TNT, DHL, UPS, and Aramex.6. What is your lead time?We will arrange the delivery in 1~ 2 day if we have finished products in stock.If we have no stock and the lead time will be 1~2 weeks.7. Do you provide any customized services?Yes, please contact us with your application details.We accpet deep customized services including OEM, ODM and there will be a MOQ.8. Do you accept cooperation as distributors?Yes, partner and distributorship inquiry are warmly welcomed.   /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
