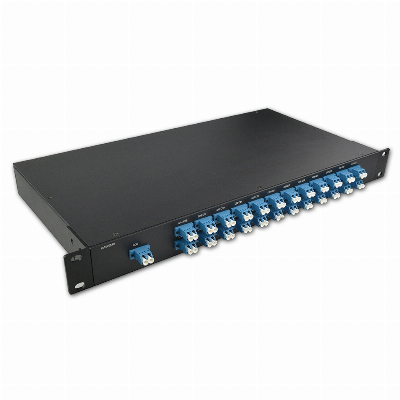

DWDM Solution for 480g Long Distance Transmission

Optical Multiplexer Demultiplexing AAWG48 DWDM Module Product description:  Thermal AWG, thermally stabilized, DWDM, Even band, 1528.77nm starting wavelength, -5ºC~65ºCFeatures           ☆ High isolation           ☆ Excellent wavelength stability           ☆ High durability           ☆ DWDM wavelengths up to 48☆ 5V power driving Application           ☆ DWDM           ☆ Metro networksOptical SPECParameter Specification Units Comments MINTYP MAXNumber of output Channels 16/32/40/44/48 Customer defineChannel Spacing100/200GHzCustomer defineWavelength Accuracy -0.050 0.050nmBOLITU band -0.1 0.1nmITU definition1st wavelength1528.77nmor Customer define Insertion Loss  5.0dBIncluding COM connector, BOLinsertion Loss Uniformity   1.2dB PDL  0.5dB Ripple  0.5dB 0.5dB Bandwidth 0.2  nm 1dB Bandwidth0.4  nm 3dB Bandwidth0.6  nm 20dB Bandwidth  1.2nm Adjacent channel isolation 25  dB Non-Adjacent Channel Isolation30  dB Total Isolation22  dB Return Loss45  dBIncluding connectorDirectivity45  dB PMD  0.5ps Group Delay Ripple  1ps Chromatic Dispersion-20 20ps/nm  Environment SPEC  Parameter Specification Units Comments MINTYP MAXMaximum Input Optical Power rating  24dBm AWG Power comsumption  8WTest at lower temperatureAWG heater resistance 3.5 Ω AWG temperature68 85ºC Operating temperature-5 65ºCor Customer defineStorage temperature-40 85ºC Storage humidity  85% Channel Plan  CH numberWavelengthFrequency(THz)CH numberWavelengthFrequency(THz)11528.77196.1251547.72193.721529.55196261548.52193.631530.33195.9271549.32193.541531.12195.8281550.12193.451531.9195.7291550.92193.361532.68195.6301551.72193.271533.47195.5311552.52193.181534.25195.4321553.3319391535.04195.3331554.13192.9101535.82195.2341554.94192.8111536.61195.1351555.75192.7121537.4195361556.56192.6131538.19194.9371557.36192.5141538.98194.8381558.17192.4151539.77194.7391558.98192.3161540.56194.6401559.79192.2171541.35194.5411560.61192.1181542.14194.4421561.42192191542.94194.3431562.23191.9201543.73194.2441563.05191.8211544.53194.1451563.86191.7221545.32194461564.68191.6231546.12193.9471565.5191.5241546.92193.8481566.31191.4Package and OutlineFiber length  Customer defineConnector typeLC/UPCor Customer defineOrdering Information   PN: TAWG-ABCDE-XYZKABCDEXYZKChannel numberChannel SpacingStarting wavelengthOperating temperaturePackagingFiber lengthConnectorthermistor1: 322: 403: 444: 481:100G2:200G61:ITU CH-6160:ITU CH-601:-5ºC~65ºC2: -15ºC~65ºC1:70X120X10.51: 1m2: 2m0: no connetor1:LC/UPC2:MU/UPC3:FC/UPC4:SC/UPC1:10K2: 50K/* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
