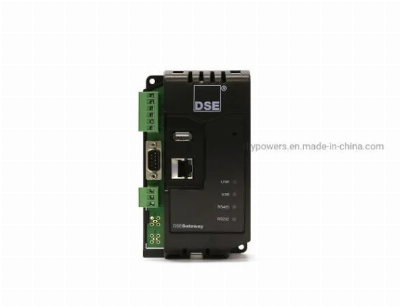

Deepsea Dse892 Simple Network Management Protocol (SNMP) Gateway Module

The DSE892 MKII is an Ethernet/4G gateway device that enables compatible DSE controllers to be monitored remotely via DSEWebNet® software or third-party MQTT brokers. REQUIRES - Combined 4G LTE (Main & Diversity) and GPS Antenna - 020-1053 if 4G Signal is Needed.Unit also fully compatible with 2G & 3G. The DSE892 MKII gateway communicates with a maximum of five connected DSE controllers, monitoring instrumentation and operating states. When this data changes, data is logged internally and transmitted from the gateway device to the DSEWebNet® or MQTT broker (Amazon Web Services, Google, IBM etc..). DSEWebNet® software is accessed using an Internet browser or the dedicated app. Users are able to perform multiple tasks including: monitoring equipment, clearing alarm conditions, starting/stopping equipment and monitoring fuel levels. DSE892Simple Network Management Protocol (SNMP) GatewayOVERALL SIZE85 mm x 149 mm x 51 mm (3.3" x 5.8" x 2.0")WEIGHT0.24kgPRODUCT VARIANTS0892-01 - 892 Simple Management Network Protocol (SMNP) GatewaySPECIFICATIONDC SUPPLYCONTINUOUS VOLTAGE RATING8 V to 35 V ContinuousCRANKING DROPOUTSAble to survive 0 V for 50 mS, providing supply was at least 10 V before dropout and supply recovers to 8 V. This is achieved without the need for internal batteries. LEDs and backlight will not be maintained during cranking.MAXIMUM OPERATING CURRENT200 mA at 12 V110 mA at 24 VMAXIMUM STANDBY CURRENT150 mA at 12 V90 mA at 24 V COMMUNICATIONSUSB (Single DSEController) RS232 (Single DSEController) RS485 (Multiple DSEControllers) Ethernet (Multiple DSEControllers) Ethernet SNMP & SMTP     VIGKOO provides diesel generator power spare parts and engineering accessories worldwide, including Cummins, Cat, Perkins, Deutz, Volvo, Doosan and Chinese engine parts, original brand generator Stamford, Leroy-somer, Mecc-alte and other related components, As well as engine spare parts, controller modules, circuit breakers, light towers, external fuel tanks, cables, door locks, antivibration pads, etc., customized ATS systems, parallel control systems, etc. VIGKOO will bring great enthusiasm and unremitting efforts and committed to becoming a top enterprise in international power accessories.VIGKOO is specialized in diesel engines, generator sets, and spare parts.We supply all kinds of accessories for diesel engine,like cylinder head,cylinder head cover,cylinder block,alternator,turbocharger,piston,piston ring,piston pin,liner,crankshaft,cam shaft,main bearing,connecting rod,connecting rod bearing,water pump,oil pump,injector,fuel injection pump,starter motor,fan,belt,gasket,oil pan,flywheel,intake valve,exhaust valve and so on.1. Why Choose us?Vigkoo has a wide range of cooperative supplier groups. Whether you need to find which power equipment products, Vigkoo can help you quickly enter the Chinese supply system and obtain the latest market products and competitive prices.2. Delivery Time?Spare parts for about 3-5 days. Diesel generator set about 30-50 days.3. Manufacturer or Trade Company?We have our own factory for OEM manufacture producing, also trade with all electrical parts.4. Global Warranty?Yes, usually global warranty 1 year / 1000 hours. Provide extended warranty service for 2 years / 2000 hours, 3 years, 5 years... ...5. Payment terms?L/C,  T/T,  Western Union,  PayPal6. Customized service?Provide customized services according to the customer requirements  /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
