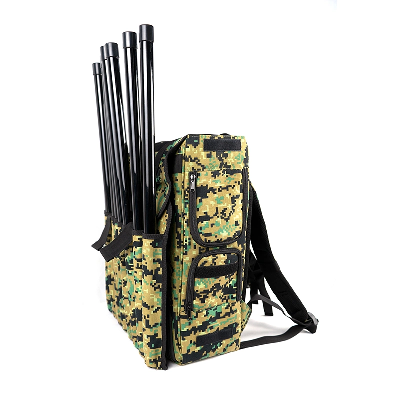

GPS Anti Uav Drone Jammer Unmanned Aerial Vehicle Detection Integrated Device Device

Utilize the forced landing function of drones to obtain evidence of drone black flying or illegal activities. The jammer points to the direction of the drone, which is ready to use and suppresses the drone's navigation, remote control, and image transmission frequency bands, resulting in a slow descent attitude of the drone. At this point, the drone must be continuously interfered with until it lands on the ground and stops rotating. Only after removing the drone battery can the device be t No.Performance parametersNote1Working principleRadio jamming suppression1; Forced landing of DJI type drones; on; 1.5G, 2.4G, 5.8GDrive off DJI class drones; on; 2.4G, 5.8G2; forced landing of DOTON drones; on; 1.5G, 2.4G, 5.2G, 5.8GDrive-off drones; on; 2.4G, 5.2G, 5.8G3; 433M remote control is the remote control band for home-made drones, which we commonly see; TV remote control, car keys, children's toy flying machines, etc.4; 900M is the remote control band for industrial grade drones, , custom drones, large drones, etc.5; 1.2G is China's self-developed BeiDou navigation system, which will also be used in the drone industry in the future, as a second positioning system to 1.5G (GPS), currently in the published data, and will be used in the future6; 1.4G is a special class of UAVs with a relatively small number of applications in the industry, but its use cannot be ruled out2Object of actionUAV map transmission, flight control links,navigation signals3Operating frequency band (optional)Working frequencyAverage output power4400-450MHz43dBm5840-930MHz46dBm61160-1280MHz43dBm71400-1500MHz46dBm81550-1630MHz43dBm92380-2500MHz46dBm105150-5300MHz46dBm115720-5880MHz46dBm12Coverage angleHorizontal:-45°~45° Vertical:-45°~45°13Maximum numberof simultaneous transmission channel814Quantities of simultaneousjamming≥3015Cover distance≤2.2km16Jammingsuccess rate>99%17Interceptionresponse time
