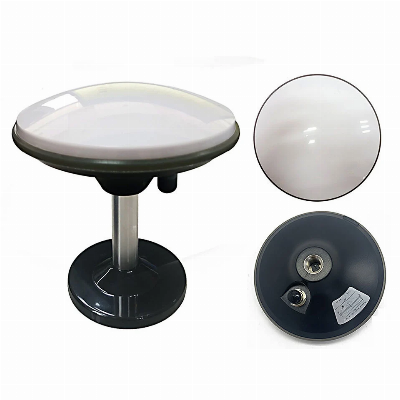

Whole Band High Quality GPS High Precision Surveying Patch Rtk Gnss Antenna

SPECIFICATIONS  Item Specifications Antenna Frequency GPS L1/L2/L5 GLONASS G1/G2/G3 COMPASS B1/B2/B3 Galileo E1/L1/E2/E5a/E5b/E6 Polarization RHCP Axial Ratio ≤3dB V.S.W.R ≤1.5 Peak Gain ≥5dBi Impedance 50Ω Phase Center Error ±2mm Horizontal coverage angle 360° LNA Gain 40±2dB Noise Figure ≤1.5dB Passband fluctuation ±1dB Supply Voltage 3~5.5V DC Current Consumption ≤45mA V.S.W.R ≤2.0 Mechanical Connector TNC-K Radome Material ABS Mounting Method Screw Environmental Operating Temperature -40ºC~+85ºC Relative Humidity Up to 95% Ingress Protection IP67 (exclude Air vent in screw hole) Environmentally Friendly ROHS Compliant   Q: Are you a manufacturer or a trading company?A: We have been professional antenna manufacturer for 20 years.Q: Can I get one sample?A: Yes, sample is for free.Q: Have gps gsm combo antenna 100% assembles well in stock?A: No, all gps gsm combo antenna will be newly assembled according to your orders including the samples.Q: What's the delivery time?A: 1-4 days for the sample, 5-10 days for quantity below 5K, 10-30 days for the quantity below 20K.Q: Could I use my own LOGO or design on goods?A: Yes, customized logo and design on mass production are available.Q: What's the payment term?A: T/T, Paypal, western union etc.Q: Where is your factory located? Can I visit your factory?A: Factory address: #398 Zhenye Road, Jiaxing Economic Development Zone, Nanhu District, China. Just call us, we will pick you upwith no delay.Q: How long of the warraty?A: One year and can repair for the whole life.  /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
