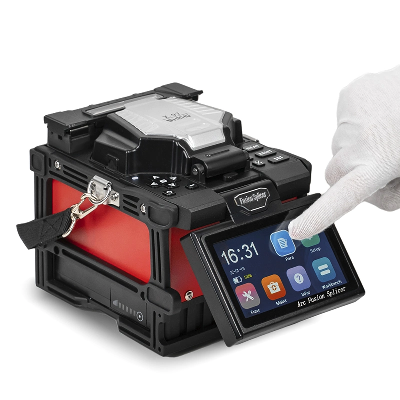

Shinho X-97 Smart Handheld Core to Core Alignment Cheap Fast Fusion SplicerProduct Description Features:Handheld, Small, LightIndustrial standard screenVarious colors are availableCore to core digital alignment8s splicing stime, 26s tube heating time5800mAh and pluggable Li-battery, Typical 200 cyclesARC calibrated by temperature and air pressure automaticallyAutomatically switching on windshield and heater in 4 stepsApply to bare fibers, indoor cables and jumper wires splicingDATASHEETFiber countSingleApplicable fiberSM(G.652), MM(G.651), DS(G.653), NZDS(G.655), others(including G.657)Typical splice loss0.02dB(SM), 0.01dB(MM), 0.04dB(DS), 0.04dB(NZDS)Return loss>60dbFiber cleaved length10-16mm (coating diameter< 250μm ), 16mm(coating diameter: 250-1000μm )Splicing program40 groupsOperate modeManual, AutomaticAuto-heatingAvailableTypical splicing time8 secondsTube heating time26 seconds for 60mm and 40mm shrinkable sleevesFiber view magnification250X(X or Y view), 125X(X and Y view)Viewing method and2 CMOS cameras, 4.3 inch color LCD monitorStorage of splice result4000 resultsLoss evaluationAvailableTension test1.8-2.2NInterfaceGUI menu interface, easier operationBattery capacity5800mAh, typical 200 cycles(splice and tube heat), pluggable inner Li-batteryPower supplyAdaptor, input: AC100-240V(50/60HZ)Electrode lifeMore than 4000 ARC discharges, can be replaced convenientlyTerminalsUSB 2.0 port, for uploading splice results and upgrading softwareOperating conditionAltitude: 0-5000m, Humidity: 0-95%, Temperature: -10ºC~+50ºC;Wind speed: max 15m/sDimension149mm(L)x120mm(W)x127mm(H)Weight1.9kg including battery Detailed Photos Standard Configuration:Packaging & Shipping Packaging Details:Carton Size: 43cm x31cm x28cm Gross Weight: 6kgDelivery leading period:Within 3 working days for small orders after receiving full paymentKindly consult us for bulk orders Shipment:Choosing DHL, FedEx, TNT, EMS, UPS and other Express, delivering to your hands directly for small orders.By sea or by aircargo for bulk orders.After-sales Service:We guarantee all our fusion splicers for one year from the date customers receive them. Other parts for six months.We guarantee that every fusion splicer is tested carefully and works very well before shipment. We strive for 100% customer satisfaction on every sale we complete.We are responsible for the whole lifespan of our products, and whenever you have questions during usage, feel free to contact us, we are glad to provide technical support timely.Company Profile Shanghai Xianghe Fiber Communication Co., Ltd is one real professional manufacturer of fusion splicers.We provide OEM, ODM and other services to our valuable customers from overseas markets.As a new manufacturer, our X-series optical fiber fusion splicers have independent IPR. Our optical fiber splicing machines have advanced and stable performance, their operation is easy and intelligent, being widely used in kinds of telecom areas, like communication projects, broadcasting & TV, railway, petroleum & chemical industry, optical passive components production, scientific institute, etc. our splicers' fusion losses have reached world's advanced level, much better than all Chinese brands' fusion splicers. Based on years of experiences in optical communication fields, our aim is to provide you excellent fiber optic fusion splicers, and best after-sales service. Hoping we could establish business relations with your esteemed company very soon.contact us:Shanghai Xianghe Fiber Communication Co., Ltd--- Professional Fusion Splicer ManufacturerAdd: No.365 YuanGuang Rd., BaoShan District, Shanghai City, China. shinhofiber.en.made-in-china.com /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
