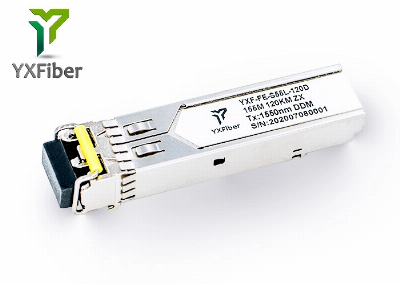

SFP 155Mbps 120km 1550nm Sm Dual LC Dd

DescriptionYXF-FE-S55L-120D is a high performance, cost effective modules, which is supporting up to 155Mbps, and transmission distance up to 120km on SM fiber. The transceiver consists of two sections: The transmitter section incorporates a laser driver and a 1550nm DFB laser. The receiver section consists of a PIN photodiode integrated with a transimpedance preamplifier (TIA) and a Limitting Amplifier. The module is hot pluggable into the 20-pin connector. The high-speed electrical interface is base on low voltage logic, with nominal 100Ohms differential impedance and AC coupled in the module.Features Up to 120 km transmission on SMFUp to155Mbps1550nm DFB laser and PIN receiver2-wire interface for integrated Digital Diagnostic monitoringHot pluggableVery low EMI and excellent ESD protection+3.3V power supplyPower consumption less than 1.0WOperating case temperature: 0~+70°CApplicationsHigh-speed storage area networksComputer cluster cross-connectCustom high-speed data pipesComplianceCompliant with ITU-T G.957Compliant with MSA SFF-8472 Compliant with SFP MSA   SpecificationTechnical ParametersDescriptionsTechnical ParametersDescriptionsModel NumberYXF-FE-S55L-120DInterfaceLCFiber typeSMFLaser/DetectorDFB/PINForm FactorDuplex SFPDDMYesData Rate155MbpsOutput Power0~5dBmWavelength1550nmPower Supply3.3VDistance120KMTemperature0~70°CSensitivity
