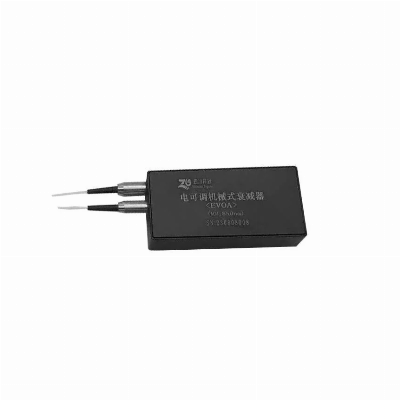

850nm Evoa with Low Polarization Dependent Loss

1  DESCRIPTION 1.1 Product Function Zg introduces a new miniature variable attenuator for application in either the C or L band. The attenuator offers excellent wavelength dependence and ripple, low polarization dependent loss (PDL), and improved thermal stability. The attenuator provides an economical solution to managing optical power. Reflective optics permit same-side jumper exit and enable easy panel mounting. The attenuator uses an advanced graded neutral density filter as its attenuating element. Adjustment is through a stepper motor with feedback control terminal. The driver for the stepper motor moves the motor up or down in uniform step sizes, offering fine resolution. Latching operation is a standard feature; upon removal of the drive voltage, the most recent attenuation setting is retained. An optional resistance readout for filter location purposes is available. The schematic figure of the attenuator is shown in figure 1.Figure 1 Functional Scheme1.2 Product Application 1.3 Related Product List 2  OPTIC AND/OR ELECTRIC SPECIFICATION 2.1 Optical SpecificationsNO.PARAMETERSPECIFICATIONUNITSNOTEMIN.TYP.MAX.2.1.1Wavelength range 800-1100 nm  2.1.2Attenuation range 30  dB  2.1.3 Response speed @3dB AdjustAttenuation resolution   100 ms Driven in voltage mode 2.1.4 Attenuation resolution   0.2 dB  Full Step 2.1.5 Latching stability   0.3  dB Based on motor power ON to OFF 2.1.6 Insertion loss   1.0 dB With connector, over wavelength rang. 2.1·.7 Attenuation line linearity   5 % 30db@±0.5db 2.1.7 Repeatability   0.1 dB Difference in attenuation on return to a particular attenuation from a random location approaching from the same direction. Note: Attenuation value at a specific voltage/step may vary with age and will vary from unit to unit 2.1.8 Backlash   0.2 dB Difference in attenuation on return to a particular position from a random location. Note: Attenuation value at a specific voltage/step may vary with age and will vary among units 2.1.9 Return loss@Input/output-25   dB With connector 2.1.10 PDL @In/Out   0.5 dB Measured from IN to OUT ports over wavelength range @ whole adjust attenuation range 2.1.11 TDL @In/Out   0.5 dB Measured from IN to OUT ports @ whole adjust attenuation range 2.1.12 PMD@In/Out   0.15 ps  2.1.13 Power Handling   300 mW CW 2.2 Test method2.3 Electrical Specifications of Step MotorNO.PARAMETERSPECIFICATIONUNITSNOTEMIN.TYP.MAX.2.2.1 Motor Type Step Motor,2 Phase   2.2.2 Motor Current  150 200 mA 2 phase on 2.2.3 Recommended DCControl Voltage3.0 3.3 3.6 V Full stepping and both coils are energized 2.2.4 Pulse width per step 1.25 2.0  ms  2.2.5 Motor Resistance  20    2.2.6 Motor Power Dissipation   2 W Over -5~70ºC temperature range 3 ABSOLUTE MAXIMUM RATINGSNO PARAMETER SPECIFICATION UNITS  3.1 Operation Temperature -5 ~ +70 °C  3.2 Operation Humidity 5 ~ 95 %RH  3.3 Storage Temperature -40 ~ 85 °C  3.4 Reliability Accord with the Telcordia GR-910,GR-1209 and GR-1221 requirement. 1 Note1: 1. Shall pass MIL-STD883(500V) ESD test. 2. Shall pass Fiber Side Pull and Fiber & Cable retention test according to GR-1209-Core. 4 ELECTRIC PORTS DEFINITIONNO PIN DEFINITION DESCRIPTION NOTE 5.1 1Motor Coil A-   5.2 2Motor Coil B   5.3 3Motor Coil B-   5.4 4Motor Coil A   5.5 5Monitor Signal POT WIPER, Moveable POT contact: voltage pick-off.  5.6 6Monitor Supply+ POT+, Connect to stabilized (reference) positive supply  5.7 7Monitor Supply - POT-, Connect to ground  5.8 8Case ground   5.9 9NA   5.10 10NA  5.11 11NA  5.12 12NA  NOTE: Not 5 SOFTWARE COMMAND SET Not Applicable 6 MECHANICAL DRAWINGS 6.1 Mechanical Structure6.2 Assembling Scheme Not Applicable. 7 PIGTAIL AND CONNECTNO PARAMETER SPECIFICATION UNIT NOTE 8.1 Pigtail Type(All ports) 62.5/125um or50/125um Multimode fiber  As customer's requires 8.2 Pigtail Length(All ports) L+/- 0.1 m L refers to the fiber length requirement in PN 8.3 Connector Type(All ports) As customer's requires   /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
