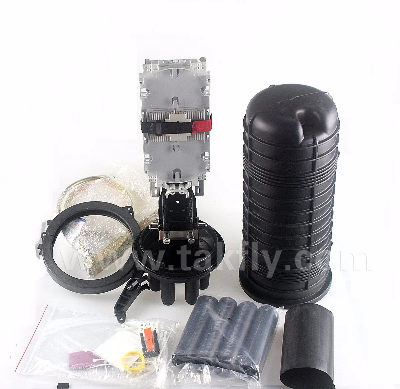

12 to 96 Ports Vertical Dome Fiber Optic Splice Enclosure

12 to 96 Ports Vertical Dome Fiber Optic Splice EnclosureThe scope of application is: aerial, overhead,underground, wall-mounting, duct-mounting, handhole-mounting. The ambient temperature ranges from -40ºC- +65ºC . It could be used for both single core and ribbon fibers. If only install single core, it need 6 splice trays, each trays is 24 fibers; if need to compatible both single core and ribbon fibers, it only could install 3 trays, each trays is 48 fibers. 1. Advantage:1.1    The closure can be used in duct, buried, overhead..etc 1.2    High quality impact material.pp and internal is ABS 1.3    Designed for ftth. 1.4    Fiber storage with big basket 1.5    Modular fiber management system 1.6    Cable diameter range: 9~25 1.7    Sealing way of cables:Mechanical seaing by silicon rubber 1.8    Quality warranty:2 years 1.9    Life span:more than 25 years 1.10  Ip rating is ip68 (2)Dimension of the closure:Outside dimension (Height x Diameter)460mm×205mmWeight (excluding outside box)2350 g- 3500gNumber of inlet/out ports5 pieces in general Diameter of fiber cable Φ8mm~Φ25 mmCapacity of FOSCBunchy: 24-96(cores), Ribbon: up to288(cores)Remark: on one oval port,it can be suit for 2 cables,which diameter can be from  8 mm to 26mm.The oval port can be used for    inline cutting. (2)Environment: Temperature:-45ºC~+65ºC Atmospheric Pressure:70kPa~106kPa (3)Lifespan:more than 25 years (4).Material:Higt strength polypropylene(PP)and ABS,which can assure any items of physical performance is excellent. For any question, pls feel free to contact us. Your inquiry is expected! Warmly welcome you to inquiry us for this product!  /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
