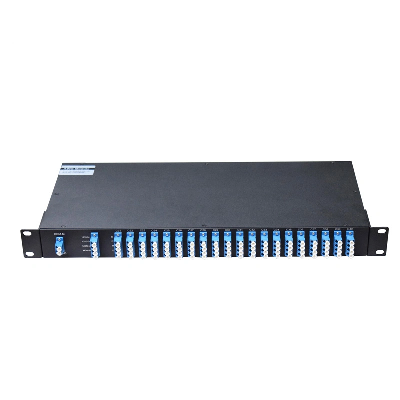

CWDM DWDM AAWG PLC Splitter Fiber Arrary Fiber Optic Equipment ManufacturerAthermal modules are packaged using athermalization techniques with no electrical power and no temperature control units, can perform MUX/DeMUX functions.The 40ch Mux Demux is a high density, low loss and standalone passive optical module. It is based on a-thermal AWG technology with Gaussian shaped pass bands. By providing access up to forty 100GHz spaced channels in a 1U package, this unit maximizes the capacity of the C-band range. In conjunction with the transponders and amplifiers, the 40ch mux demux supports a wide range of architectures from simple point-to-point to amplified ring configurations.   2. Optical Specifications All specifications guaranteed over the operating temperature range.   ParameterSpecificationsUnitCommentMinMaxInput Channel1  Output Channel40 32, 48 channels availableChannel Spacing100GHz Reference Passband-12.512.5GHz Wavelength Accuracy-5050pmRelative to ITU Grid1dB Bandwidth0.2(G)  0.4(F)nmG-Gaussion Type F-Flat top Type 3dB Bandwidth0.4(G)   0.6(F)nmI.L 6dBWorst case in ITU passbandI.L UNI. 1dB Ripple 0.7dBLoss variation in ITU passbandPDL 0.5dBMax. value in ITU passbandAdjacent Crosstalk25 dBWorst case in ITU passbandNon-Adjacent Crosstalk30 dBWorst case in ITU passbandTotal Crosstalk22 dBCumulative crosstalk of all other channelsReturn Loss40 dB Maximum Continuous Optical Power 250mWMaximum input optical powerChromatic Dispersion(CD)-20+20ps/nm PMD 0.5ps   /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
