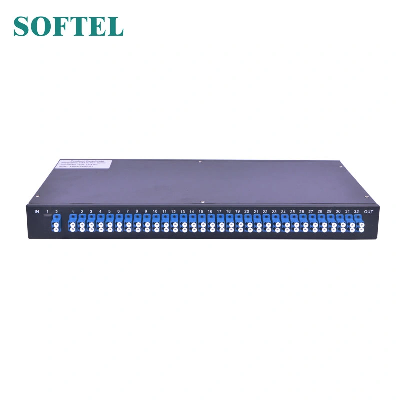

1u 19" Standard Rack Mount 1X64 PLC Splitter

1u 19" Standard Rack Mount 1x64 PLC Splitter-Description:The fiber optic rack mount splitter box is used at an optical access network terminal, it acts as the optical distribution and fusion. Box body is made of metal materials, it looks nice in shape and its operation is convenient, anti-aging and corrosion can be assured by the adoption of SMC compound materials. The sealing performance meets the IP65-level requirements of the GB4208 standard, thus, it is suitable for outdoor distribution. It is the combination of three functions: Optical fusion, store and distribution. Fusion tray can be turned over, also can be pulled out to operate outside the box, the expansion of capacity is easy. Adaptor is installed with a certain angle, maintenance is easy, transmission loss is low. It suits to common optical fiber cable, also to band optical fiber cable's fusion. -SpecificationsModelPLC-1x32/64-R-SC/APCSize(mm)400x310x43.5Max. Core Capacity48 LC, 24 SC, 24 ST or 24 FCCable port2Max diameter of cable (mm)φ28Core capacity tray12, 24Weight(kg)5PLC Splitter  FeaturesLow insertion lossLow PDLHigh return lossUniform power splittingCompact designWide operating wavelengthWide operating temperatureExcellent environmental &mechanical stabilityQualified under telcordia GR-1221 and GR-1209  ApplicationsFTTx (FTTB, FTTH, FTTC)Passive optical networks (PON)Local area networks (LAN)CATV systemsTest equipments  Advantage: produce most of the raw materials for PLC Splitter like Chip Dicing, V-groove, Fiber Array, Ribbon Fiber, loose tube and 2.0/3.0 Jacket.   Large equipment resource supporting. Softel has more than 100unit Aligment Stages of PLC Splitter.Huge capacity of connector termination. Full-automatic production equipment for Ceramic Ferrule make  hold monthly capcity of more than 2 million pcs connector.      Biggest capacity of PLC Splitter. With above supports, Softel monthly capacity of PLC Splitter is 200,000 pcs.Specifications(1×N Splitters):ParameterUnitValueOperating Wavelengthnm1260~1650Product Type 1×21×31×41×61×81×121×161×241×321×641×128Insertion Loss(Max.) Grade PdB3.66.07.09.210.312.213.615.816.620.124.5Grade SdB4.36.27.49.510.712.513.916.017.221.525.5Uniformity (Max.)dB0.50.60.80.80.81.21.41.51.52.02.6PDL(Max.)dB0.20.30.30.30.30.30.30.30.30.50.8TDL(Max.)dB0.5Return LossdB≥55(APC type connectors) / 50(UPC type connectors)DirectivitydB≥55Operating & Storage TemperatureºC-40~+85Note: All the data above does not include connectors. UPC Connectors: IL add 0.2 dB, APC Connectors: IL add 0.3 dB.  ParameterUnitValueOperation Wavelengthnm1260~1650Product Type 2×22×42×82×162×322×642×128Insertion Loss(Max.) Grade PdB4.27.210.613.817.020.524.8Grade SdB4.57.711.014.817.921.525.8Uniformity (Max.)dB0.81.01.21.51.82.53.0PDL(Max.)dB0.20.30.30.30.30.51.0TDL(Max.)dB0.5Return LossdB≥55(APC type connectors) / 50(UPC type connectors)DirectivitydB≥55Operating & Storage TemperatureºC-40~+85Specifications(2×N Splitters):Note: All the data above does not include connectors. UPC Connectors: IL add 0.2 dB, APC Connectors: IL add 0.3 dB.Device Schematic Drawing (unit: mm):  Stainless Steel Tube: 1)  A1 (40×4×4 ) / A2 (45×4×4) / A3 (45×4.5×4) / A4(50×7×4) :2)  A5(60×7×4)/ A6(60×12×4)/ A7(65×7×4)/ A8(80×12×4)/ A9(80×20×6)/ A10(90×20×6)/ A11(100×40×6) :2. Plastic Box:1)  D  ( 90 X20 X9.5) 2 )  E(100 X80 X10)3 )  K (120 X80 X18)4 )  F  (141 X115 X18)3. LGX Box:4. Cassette PLC Splitter    5. 19' Rack Mount:Ordering Information:PLCS  StructureFiber TypePackage TypeInput typeOutput typePigtail lengthConnector type Structure0102=1×2,   0202=2×2, …, 0164=1×64,   0264=2×64Fiber Type2=G657A1  Package TypeA1, A2, …F, K, U, G, C, T, R, X (pls see below package solution)Input TypeL=900μm loose tube, T=900μm tight tube, S=2.0mm,R=3.0mm ,B=250μm bare fiber,0=AdaptorOutput TypeL=900μm loose tube,S=2.0mm,R=3.0mm ,B=250μmbare fiber,F=splitter, 0=AdaptorPigtail Length0.5M=0.5 meters, 1M=1.0 meters, 2M=2.0 meters, 10M=10 meters... 1M/2M=input 1 meter/output 2.0 meter0=Adaptor, X=OtherConnector TypeFU=FC/UPC,  FA=FC/APC,  SU=SC/UPC,  SA=SC/APCST=ST/UPC,  LU=LC/UPC,  LA=LC/APC,  00=no connectorMPO=MPO/UPC, MPA=MPO/APC,  X=others,  FU/FA= input FC/UPC /output FC/APC....Package Standard:Items1x22x21x31x42x41x61x8(127)1x8(250)2x8Ribbon FiberA1/A1A3/A1A3Ф0.9 Steel TubeA3A5Ф0.9 Plastic CaseDEФ2.0 Plastic CaseDEФ3.0 Plastic CaseDE19"Rack Mount1U/2U/3U/4ULGX Box1G/2G/3G/4GItems1x121x162x161x241x322x321x642x64Ribbon FiberA3A5A4A7A6Ф0.9 Steel TubeA6A8A9A10A11Ф0.9 Plastic CaseKFФ2.0 Plastic CaseKFФ3.0 Plastic CaseK/19"Rack Mount1U/2U/3U/4ULGX Box1G/2G/3G/4GCassette4CH/8CH,16CH/32CH/64CHPallet4CH/8CH,16CH/32CH/64CHSplice TrayCustomizedCodeDimensionCodeDimensionA140x4x4   Stainless Steel TubeA1255x7x4  Stainless Steel TubeA245x4x4   Stainless Steel TubeD90x20x9.5  Plastic BoxA345x4.5x4  Stainless Steel TubeE100x80x10  Plastic BoxA450x7x4 Stainless Steel TubeF141x115x18  Plastic BoxA560x7x4 Stainless Steel TubeK120x80x18  Plastic BoxA660x12x4  Stainless Steel TubeU1U,2U,3
