3G&Lte Quad Band Fiber Optic Repeater 700MHz 850 MHz 900MHz 2100MHz

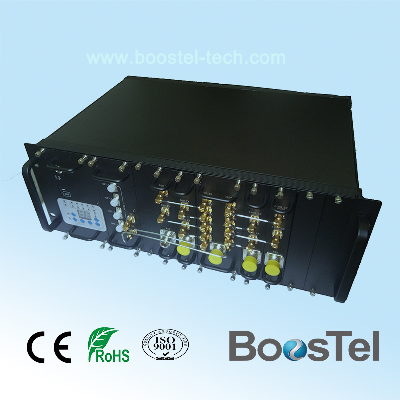

Specifications of 3G<E Quad Band Fiber Optic Repeater Model: BT-MC00A (Master Unit)    The Fiber Optic Repeater (FOR) is designed to solve problems of weak mobile signal in the place that is far away from the Base Transceiver Station (BTS) and has fiber optic cable network underground. The system consists of two parts: Donor Unit and Remote Unit. The Donor unit captures the BTS signal via direct coupler closed to BTS, then converts it into optic signal and transmits the amplified signal to the Remote Unit via fiber optic cable. The Remote unit will reconvert the optic signal into RF signal and provide the signal to the areas where network coverage is inadequate. And the mobile signal is also amplified and retransmitted to the BTS via the opposite direction.  FeaturesAluminum-alloy casing with IP65 protection has high resistance to dust, water and corrodingOmni-directional antenna can be adopted to expand more coverageTx/Rx control and alarm messages can be transmitted via one fiber optic cableAdopting WDM module to realize long-distance transmissionStable and improved signal transmission qualityOne Donor Unit can support up to 4 Remote Units to maximize utilization of fiber optic cableUSB port provides a link to a notebook for local supervision or to the built-in wireless modem to communicate with the NMS (Network Management System) that can remotely supervise repeater's working status and download operational parameters to the repeaterApplications   To expand signal coverage or fill signal blind area where signal is weak or unavailable.Outdoor:Airports, tourism regions, golf courses, tunnels, factories, mining districts, villages, …Indoor:Hotels, exhibition centers, basements, shopping malls, offices, parking lots, …  Application Diagram    Technical Specifications   Master Unit  ItemSpecificationsWorking FrequencyUplink703~748MHz/885~915MHz/1710~1770MHz/1920~1975MHzDownlink758~803MHz/930~960MHz/1805~1865MHz/2110~2165MHzWorking Bandwidth45MHz/30MHz/60MHz/55MHzMU Extensible Support the RU Quantity4System Gain(MU+RU)≥50dB(Cable Access )Manual Adjustable Attenuator 0~30dB/Step 1dBNoise Figure@1RU Connection≤5dBOptical Output Power≤0dBm@1310nm/≤3dBm@1550nmFiber Type/NumberSingle modeOptical Wavelength1310nm/1550nmOptical Connector Type4xFC/PCRF Connector Type4xN-FemaleI/O Impedance50ΩIngress ProtectionIP30Local Monitoring InterfaceUSB2.0Remote Monitoring Module3G Wireless ModemOperating Temperature-25ºC~55ºCRelative Humidity≤95%Dimensions482.6x222.25x290mmWeight≤20KgMounting Type19" Rack MountPower Supply(Customized)AC100V ~240V, 50/60HzPower Supply ProtectionInclude Short Circuit, Over Voltage and Surge protection designPower Consumption50000hoursRemote Unit  ItemSpecificationsWorking FrequencyUplink703~748MHz/885~915MHz/1710~1770MHz/1920~1975MHzDownlink758~803MHz/930~960MHz/1805~1865MHz/2110~2165MHzWorking Bandwidth45MHz/30MHz/60MHz/55MHzFrequency Stability(+/-0.01ppm)≤0.01ppmRMS Output Power@Bandwidth≥43dBmIM3@LTE900<E1800≥55dBcGain Flatness≤±3dB for all bandAGC/ALC FunctionSupportAGC/ALC Range10dBACLR3GPP TS 25.104(R10),3GPP TS 36 104(R10)Noise Figure@Max.Gain(DL/UL)≤5dBSpurious and Emissions3GPP TS 25.143(R10),3GPP TS 36 143(R10)Intermodulation3GPP TS 25.143(R10),3GPP TS 36 143(R10)Out of Band Gain3GPP TS 25.143(R10),3GPP TS 36 143(R10)EVM3GPP TS 25.143(R10),3GPP TS 36 143(R10)Group(System) Delay≤1.5usIngress ProtectionIP65Cooling FunctionHeatsinkLocal Monitoring InterfaceUSB2.0Remote Monitoring ModuleThrough MU via fiberOptical Connector Type1xFC/PCRF Connector Type1xN-FemaleOperating Temperature-25ºC~55ºCRelative Humidity≤95%Dimensions980mm×420mm×230mmMounting TypeWall & PolePower SupplyAC100V- AC240V, 50/60HzPower Supply ProtectionInclude short circuit, Over Voltage and Surge protectionPower Consumption≤400WBattery Backup/Time30minutesMTBF>50000hoursSoftware Support MU/RU ModelsSame EMS support different model of MU/RUAdjustable Parameters FunctionSet and display MU and RU ID and Location, adjust the Downlink/Uplink gain,turn on/off the RF power amplifier, remote turn on/off or restart RU;Monitored ParametersReal-time status for downlink output power(RSSI),temperature, optical power;Alarm Type ClassificationThree levels (such as Major, Minor, and Warning)Alarm ParametersReal-time alarm for door status, temperature, power supply, vswr, etc;/* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
