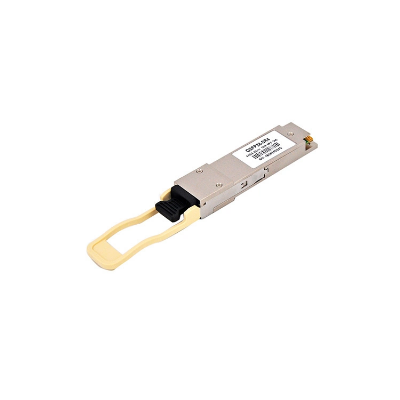

High Speed SFP 100g Qsfp28 Sr4 100m 850nm FTTH Optic SFP Module

 FTTH Optic SFP Module 100G QSFP28 SR4 100M 850nm for Huawei High Speed SFP                The 100G QSFP28 SR4 optical transceiver integrates the transmit and receive path onto one module. It converts parallel electrical input signals into parallel optical signals, by a driven Vertical Cavity Surface Emitting Laser (VCSEL) array. The transmitter module accepts electrical input signals compatible with Common Mode Logic (CML) levels. All input data signals are differential and internally terminated. The receiver module converts parallel optical input signals via a photo detector array into parallel electrical output signals. The reCML) levels. All data signals are differential and support a data rates up to 27.9525Gb/s per channel.ceiver module outputs electrical signals are also voltage compatible with Common Mode LogicOn This module features a hot-pluggable electrical interface, low power consumption, and 2-wire serial interfaceSpecification:ProductQSFP28-100G-SR4Form FactorQSFP28Wavelength850nmConnectorMTP/MPO-12DDM/DOMSupportedTX Power-8.4~2.4dBmPowerbudget1.9dBTypical Power Consumption≤1.8WTransmit and Dispersion Penalty5dBMax Data Rate103.1 GbpsMax Cable Distance70m@OM3/100m@OM4MediaMMFCommercial Temperature Range0 to 70°C (32 to 158°F)Receiver Sensitivity3dBPictures :  /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
