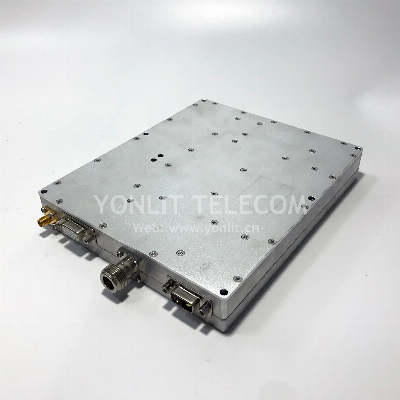

200W 2.4G Power Amplifier for Anti Signal Jammer

PRODUCT DESCRIPTION:This Power Amplifier module is working for General RF Bands, model type: PWR-GNR-210 with aluminum case and cooper base, it need operating on heatsink.Output power can be suit in this design from 43dBm to 50dBm with more than 25% efficiency, and it can keep stable working over -20~65ºC. PA are equiped with over-high VSWR and over-high power protection to avoid/reduce the damage from any misoperation. I/O Port is compatible with DB15 serial port and RS485.More function and parameters are avaiable to customized according to actual requirement. TECHNICAL SPECIFICATION:ItemParametersFrequency Range2400-2500MHzCustomizedGain>45dBInput Range3-8dBmMax RF Output Power53dBmGain Adjust Range31dB,1dB StepIMD3 (Optional)NC., -36dBC, -40dBC, -45dBCIn-Band Ripple2dBInput/Output VSWR≤1.5Working Voltage28VDCWorking Current
