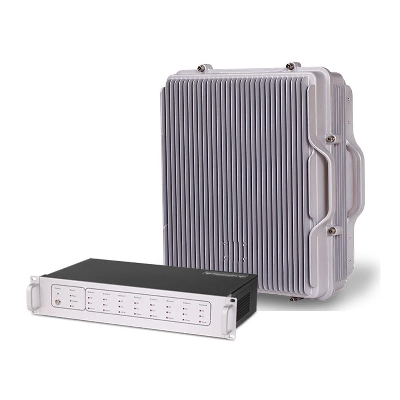

High Power VHF Critical Signal Fiber Optic Repeater

The VHF Fiber Optic Repeater (FOR) is designed to solve problems of weak mobile signal in the place that is far away from the Base Transceiver Station (BTS) and has fiber optic cable network underground. The system consists of two parts: Donor Unit and Remote Unit. The Donor unit captures the BTS signal via direct coupler closed to BTS, then converts it into optic signal and transmits the amplified signal to the Remote Unit via fiber optic cable. The Remote unit will reconvert the optic signal into RF signal and provide the signal to the areas where network coverage is inadequate. And the mobile signal is also amplified and retransmitted to the BTS via the opposite direction. Feature: 1. Aluminum-alloy casing with IP65 protection has high resistance to dust, water and corroding. 2. Supporting VHF system. 3. Tx/Rx control and alarm messages to be transmitted via one fiber optic cable. 4. Adopting WDM module to realize long-distance transmission. 5. Stable and improved signal transmission quality. 6. One MU supporting up to 4 RUs to maximize utilization of fiber optic cable. 7. RJ45 port provides a link to a notebook for local supervision or IP Based NMS(Network Management System) that can remotely supervise repeater's working status and download operational parameters to the repeater Via Ethernet or LAN To expand signal coverage or fill signal blind area where signal is weak or unavailable. 1. Outdoor: Airports, tourism regions, golf courses, tunnels, factories, mining districts, villages, … 2. Indoor: Hotels, exhibition centers, basements, shopping malls, offices, parking lots, … Specification:     ltemsMURuVHF Uplink136~146MHzDownlink164~174MHzTransmission Distance≤20kmMaximum Input Power(Non-Destructive)10dBmMaximum RF Output Power(Downlink)30/ .../43±2dBmper Band(Customized)Maximum Gain(Cable Access)45/...55±3dB(MU+RU)Gain Adjustment Range0~30 dB @ Step of 1 dBVSWR≤1.5Noise Figure@1Ru Connection≤5dBGain Flatness≤±3dBStandardComplies with 3GPP and ETSISpurious Emission9kHz~1GHz: ≤ -36dBm/30kHz1GHz~12.75GHz: ≤ -30dBmV30kHzSystem Delay≤ 5usI/O lmpedance50ΩRF Connector2XN-Female for MU,N-Female for RUOptical Connector4X FC/APC for MU,1 × LC/UPC for RUFiber Optical TypeSingle ModeOptical Output Power0±3dBm(1310nm)/ -3±3dBm(1550nm)Optical Receiver Sensitivity≥-15dBmTemperature Range-25ºC~+ 55ºCRelative Humidity Range≤95%(Non Condensing)Power Supply(Customized)DC-48V or AC220V, 50/60HzDimensions483mm x 223mm x 90mm500mm x 440mm x 187mmWeight≤8kg≤25 kgApplicationlndoor(IP30)lndoor or Outdoor(IP65)Local ControlWeb Browser GUI Local Via RJ-45 Interface or WiFi HotspotNMS Mode(Optional)Wireless Modem (3G/4G), IP ConnectivityNMS Function(Optional)Real-time Aarm for Door Status,Temperature, Power Supply, VSWR, etc;Remote Control Such as Turn On/Off, Increasing/Decreasing Output Power etc;Real-time Status for Output/Input Power, UL/DL Gain, AlI Status of Repeater etc.   Q1. Could I get a sample before bulk order? Yes, we offer the sample for all models but charged. Q2. What should I do if I don't know about frequency in my country? Please feel free to contact us with your inquiry, we will find the frequency you need and address your problems.  Q3. Do you accept OEM / ODM order? Yes, we can customize the brand logo, colors, and frequencies. Q4. Delivery & Shipment Date: 3-30 days Q5. Customized Frequency: We can customize Single/Double/Triple/Quand/Penta Band for cellphone signal like 2G/3G/4G(GSM/CDMA/DCS/PCS/WCDMA/LTE, etc,) Q6. Output Power & Coverage Areas: 20dBm: 500-1500m² 23dBm: 1500-2500m² 25dBm: 2500-4000m² 27dBm: 3000-5000m² 30dBm: 5000-8000m² Coverage is related to local signal strength, please contact us with your local condition, we can offer the best solution.   /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
