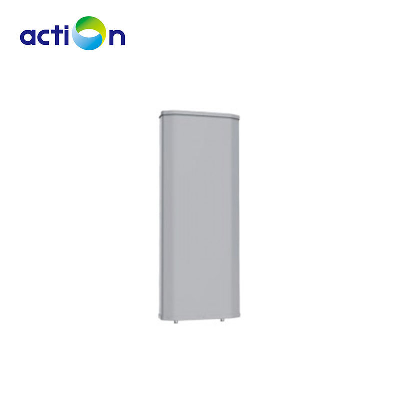

Bts Variable Electric Tilt Antenna (820-880MHz) Suppliers

  Item NameSpecificationFrequency Range (MHz)820-880Gain(dBi)19.5±0.5Horizontal Beam Width(3dB)(°)32±4Vertical Beam Width(3dB)(°)7±1Electrical Downtilt(°)0-8VSWR≤1.4:1Isolation between Ports(dB)≥30Cross Polarization Ratio(dB)≥15;±15°≥10Upper Sidelobe Suppression(dB)≤-15Null-FilK(dB)N/AFront to Back Ratio(dB)≥30Polarization±45°Input Maximum CW Power(W)250PIMD 3th≤-150dBc(@20W)Impedance(Ω)50Input Connector7/16DIN femaleDimensions of Antenna(mm)2500×535×160Dimensions of Package(mm)2935×635×270Weight of Antenna(kg)25Weight of Mounting Kits(kg)6.2Install Position Adjustment(°)0~10Temperature(ºC)-40~+60Max Wind Speed (m/s)55Radome MaterialPlastic or FRPDiameter of Installation Pole( mm)Φ80~Φ114Q1. Could I get a sample before bulk order? Yes, we offer the sample for all models but charged. Q2. What should I do if I don't know about frequency in my country? Please feel free to contact us with your inquiry, we will find the frequency you need and address your problems.  Q3. Do you accept OEM / ODM order? Yes, we can customize the brand logo, colors, and frequencies. Q4. Delivery & Shipment Date: 3-30 days Q5. Customized Frequency: We can customize Single/Double/Triple/Quand/Penta Band for cellphone signal like 2G/3G/4G(GSM/CDMA/DCS/PCS/WCDMA/LTE, etc,) Q6. Output Power & Coverage Areas: 20dBm: 500-1500m² 23dBm: 1500-2500m² 25dBm: 2500-4000m² 27dBm: 3000-5000m² 30dBm: 5000-8000m² Coverage is related to local signal strength, please contact us with your local condition, we can offer the best solution.   /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
