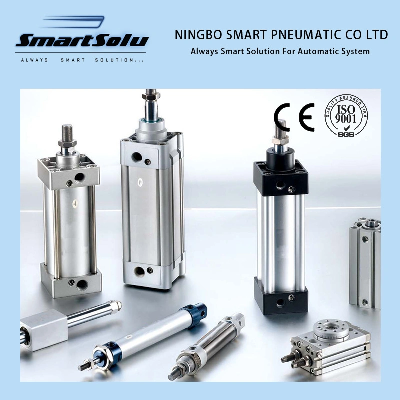

Single Double Acting DNC ISO6431 Stainless Steel Pneumatic Air Cylinder

DNC Series pneumatic cylinders are manufactured according to ISO6431 standard, VDMA24562 standard and DIN24335 standard. And this pneumatic cylinder is the same as FESTO DNC pneumatic cylinder. We have normal bore size from 32mm to 150mm, stroke from 0 to 1000mm The cylinder end covers and piston have been machined by CNC, and important seals are from overseas, to guarantee the pneumatic cylinder work stably and with long life. Features of DNC pneumatic cylinder (air cylinder): *DNC series are the same as FESTO DNC cylinders appearance, with slot on the cylinder barrel and end covers for magnet sensor mounting more conveniently. *Adjustable cushion on both cylinder end covers to make sure the cylinder works very smoothly, safety and with low noise. *With self-lubricating bearing, the piston rod is lubrication free. *Magnet and sufficient Fixing styles are available. Air cylinder   Cylinder Diameter(mm)  32 40 50 63 80 100 Acting Mode  Doubic Acting Working Medium  Air Fixting type  Basic type FA FB CA CB LB TC TC-M Rod end fitting type  Basic type TY TI TF TB Working pressure(MPa)  0.1 ~ 0.9 MAX.Pressure(MPa) 1.35 Working temperature( ºC)  -5 ~ 70 Speed range(mm's)  50~800 Cushion type  Adjustable Cushion Cushion stroke(mm)  24 32 Joint Size(mm)  G 1/8 G 1/4 G 3/8 G 1/2 ** Bore≥ 125mm ,the dimension is the same as ISO6431 Tie-Rod cylinder.  Why choose us? (1) Quality, we only produce top-level quality products, we promise that all of our product's raw material are first class, and good quality system controls, so our goods' quality is very good. (2) Price, our policy is that "Win-to-Win". That means in view of our long-standing business relationships, we only take small profit to help you for the marketing. (3) Delivery, we alway have some products in stock, so we can complete the delivery within the time stipulated before. (4) No MOQ, I think it is an attractive condition to some of you who have no big demands for each items temporarily.  /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
