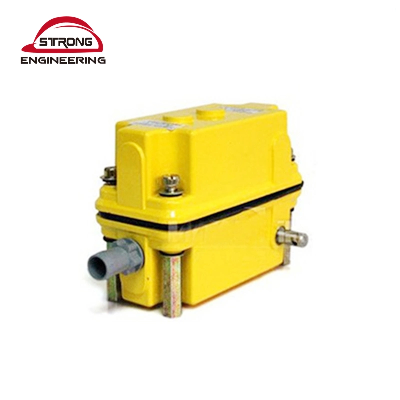

Dxz Series Limit Switch Box Used for Tower Crane

1.Switch featuresVarious ratio and color types are available for choiceCompact design, assemble easilyFast action, long life, which could decline costQuality is reliable, has got CE, CCC certificatesWidely used in hoist crane,tower crane and  automation machines1.Small size2.Large transmission ratio3.High accuracy4.Convenient installation and debugging versatility and so on ITEM:DXZDataHousing AluminumRating load10A/250VAC Rated VoltageAC 220/380VRated Current6~10AOperating speed1mm-50cm/sOperating frequencyMechanical 120times/minElectrical30times/minInsulation resistance100MΩ(Above)DC500VContact resistance25MΩ(intial value)Withstand voltageNon-connection wire1000VACEvery terminal1500VACVibrationMisoperation10-55Hz Amplitude 1.5mmImpactDurable1000m/s²Misoperation300m/s²LifeElectrical100,000aboveMechanical1,000,000aboveProtection degreeIP65Operation temperature"-40'C~55'COperating humidity ≤ 90%RHRepeatable Positioning Accuracy   Angle Error of Memory Cam ≤0.005rad (0.3°)Potentiometer of SensorStandard Resistance 5KΩ, Independent Linearity 0.1% Mechanical Turning Angle 360°(continuously)2.SpecificationDXZ series multi-functional turning angle type travel limiter is a kind of new safety protection drvice disigned and produceddomestically after the introduction of products from France,applicable to space three-cooodinate bilateral control,control of any position, turning angle and travel and analog sensory control, widely used in tower cranes, port cranes,various windlasses and other construction machinery,  as well as control circuit of similar machinery.The product has a variety of functions, such as small size, large transmission ratio, high accuracy, convenient installation and debugging versatility and so on, having been applied more and more widely.  /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
